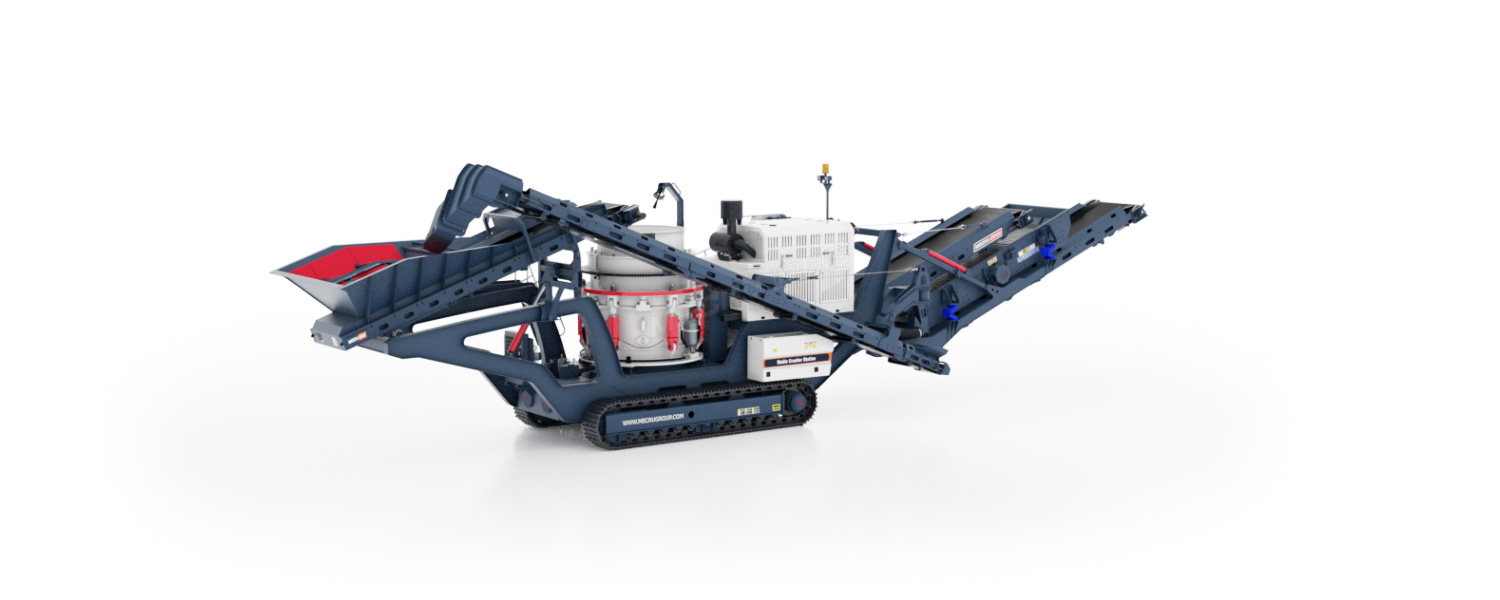

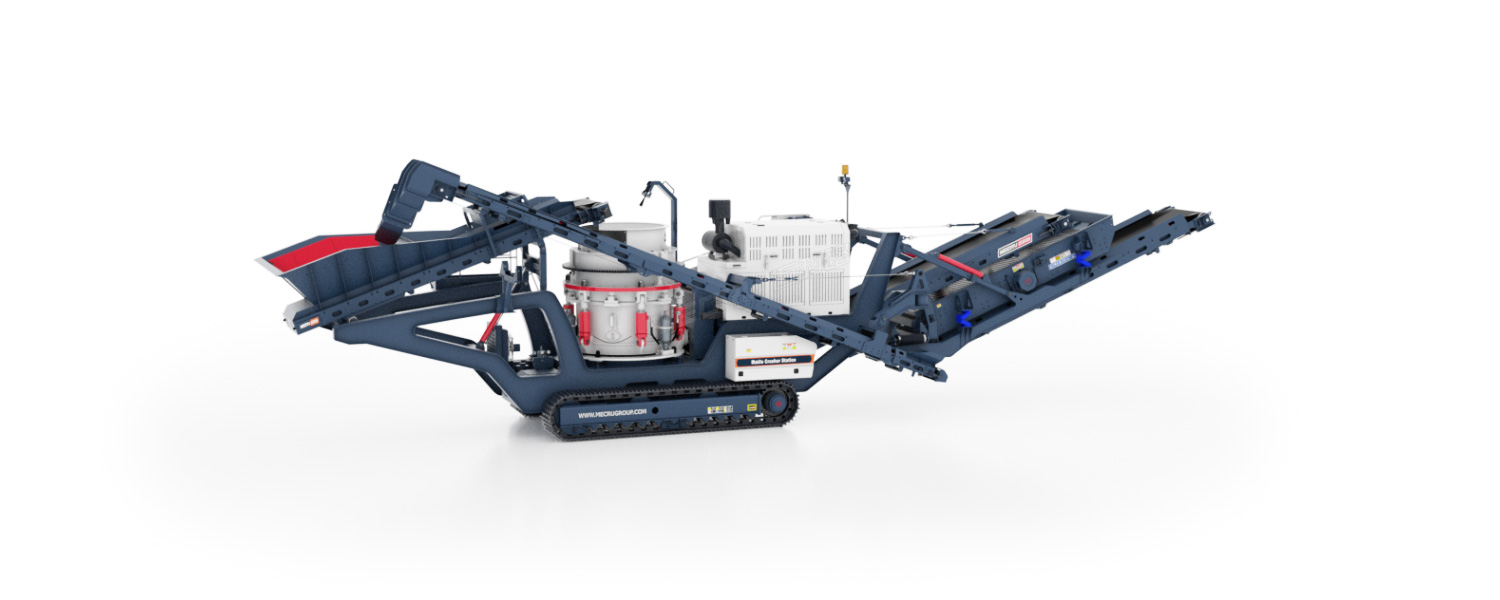

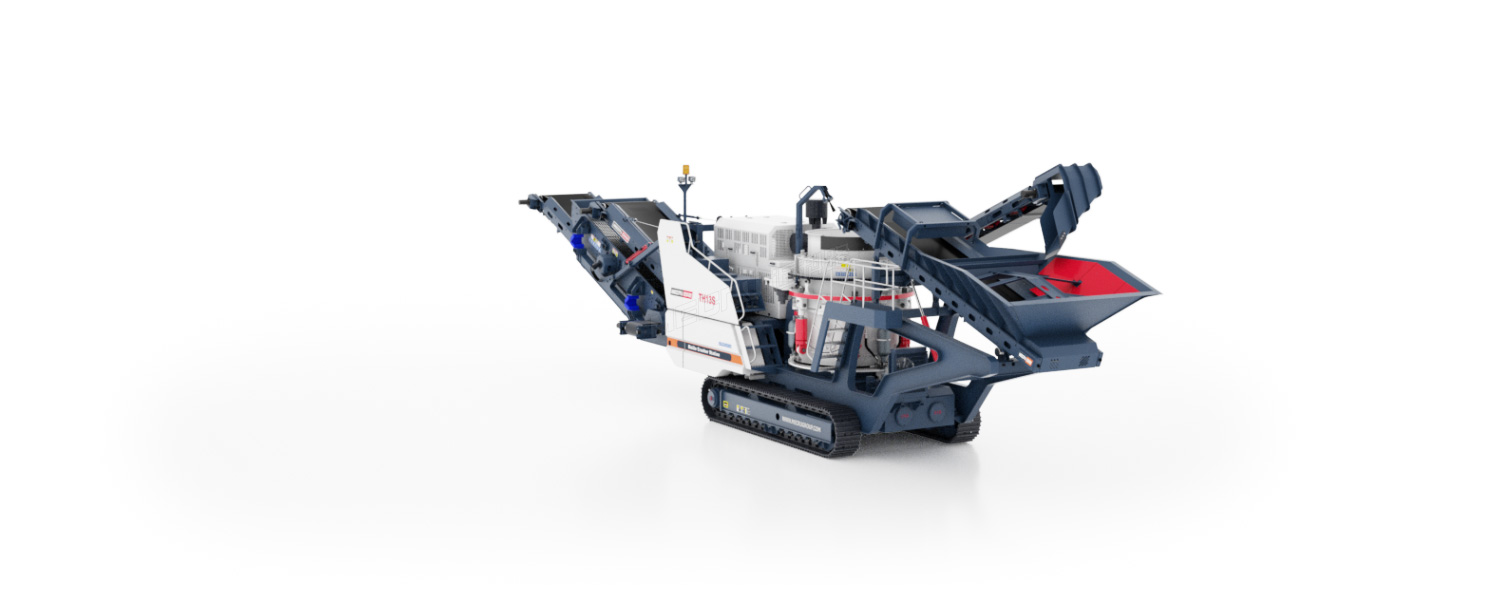

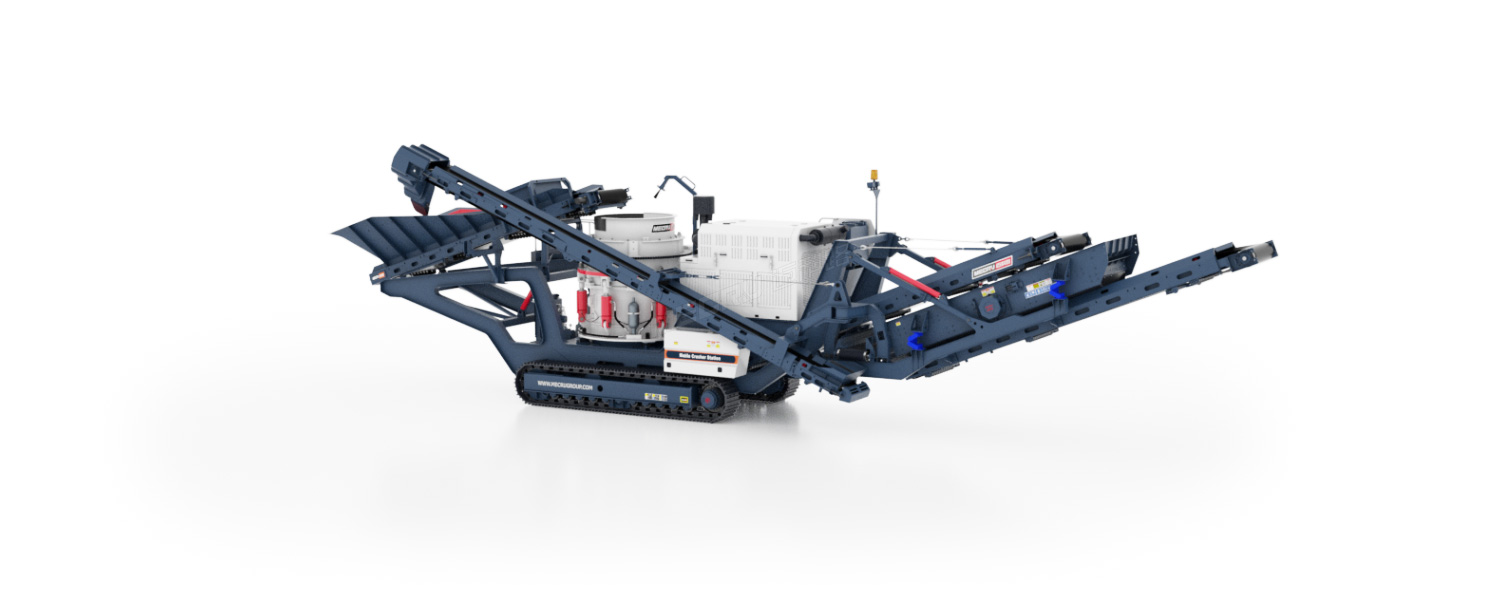

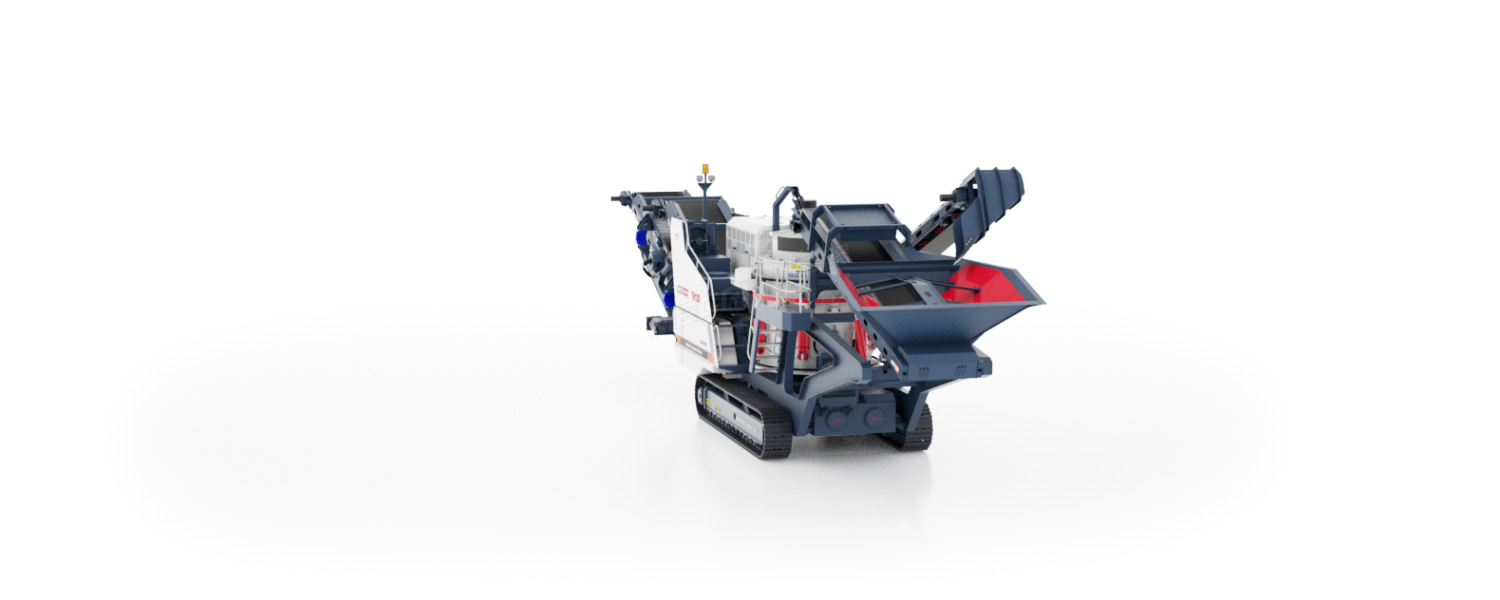

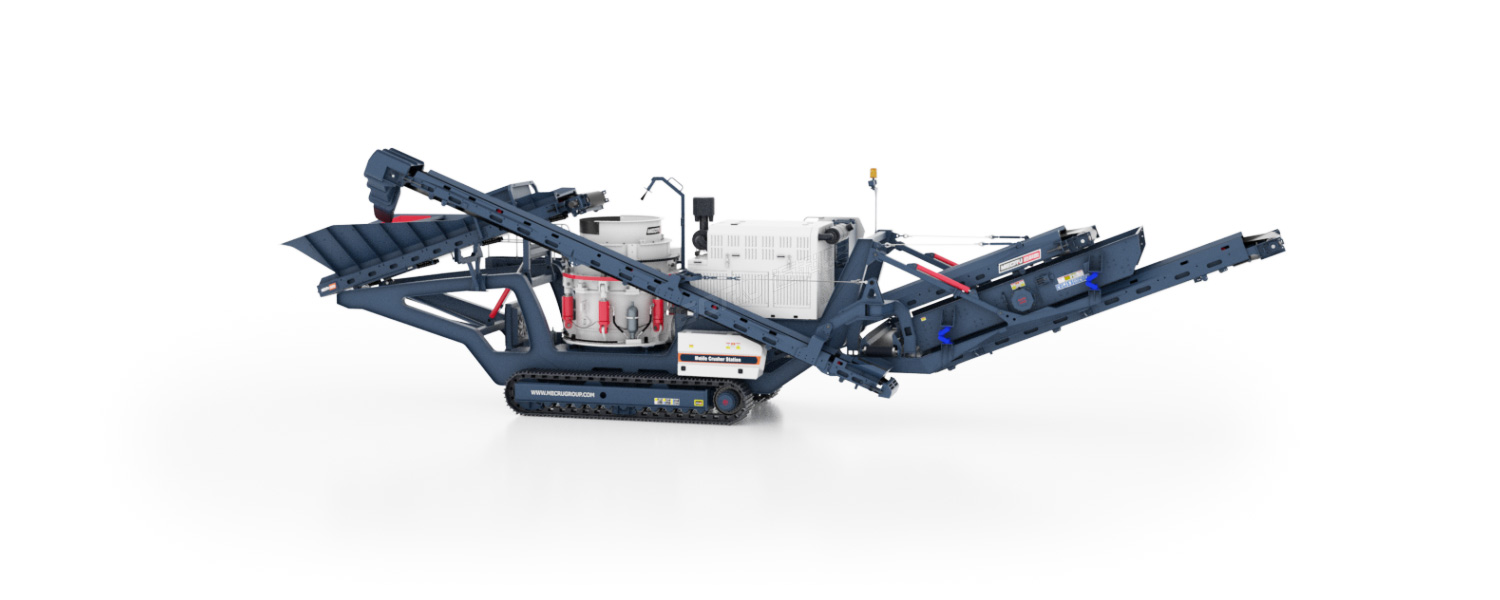

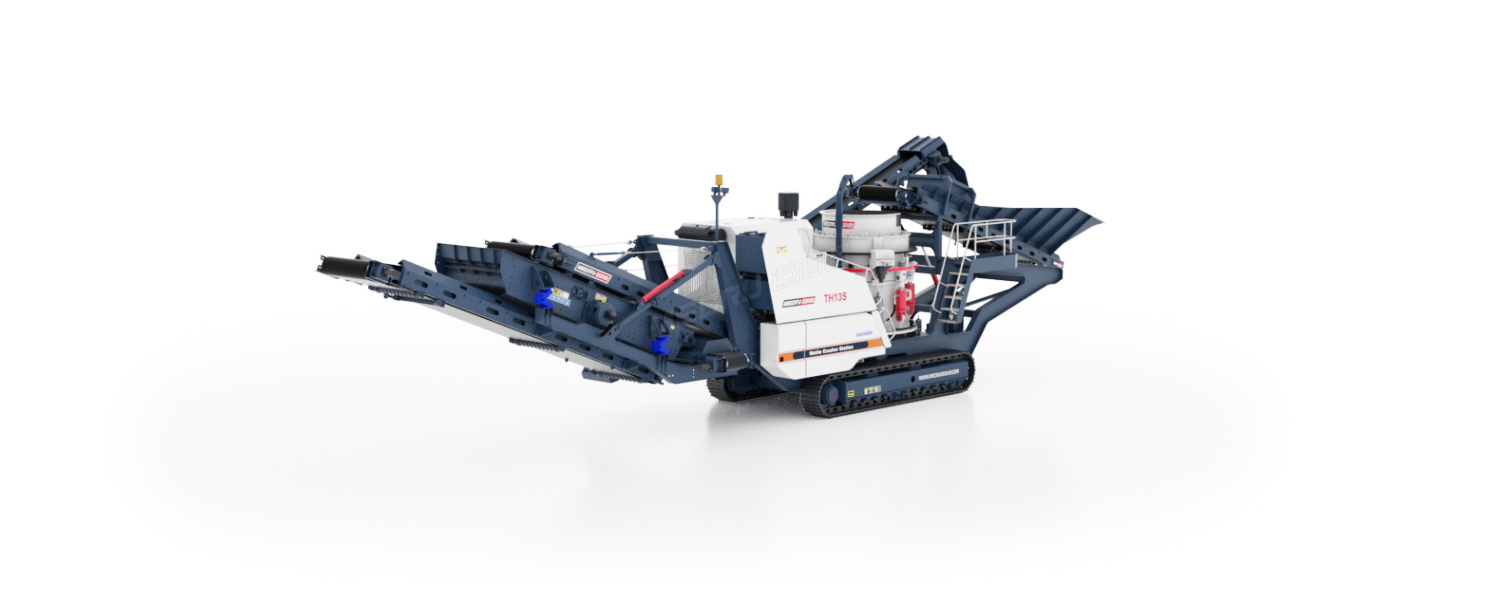

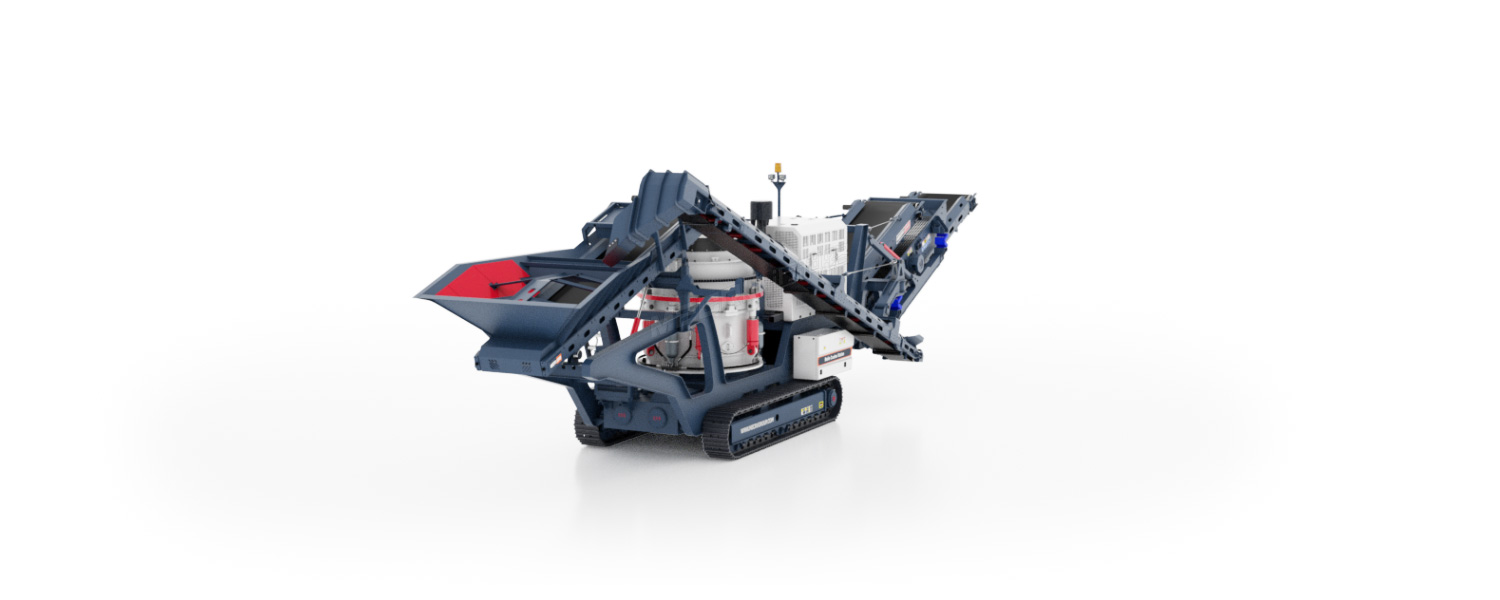

Tracked Cone Crusher

50-300mm

Feeding size

48-440t/h

Capacity

Applicable materials: iron ore, non-ferrous metal ore, granite, basalt, quartzite, cobblestone, etc.
Highly Automated, Excellent Particle Shape

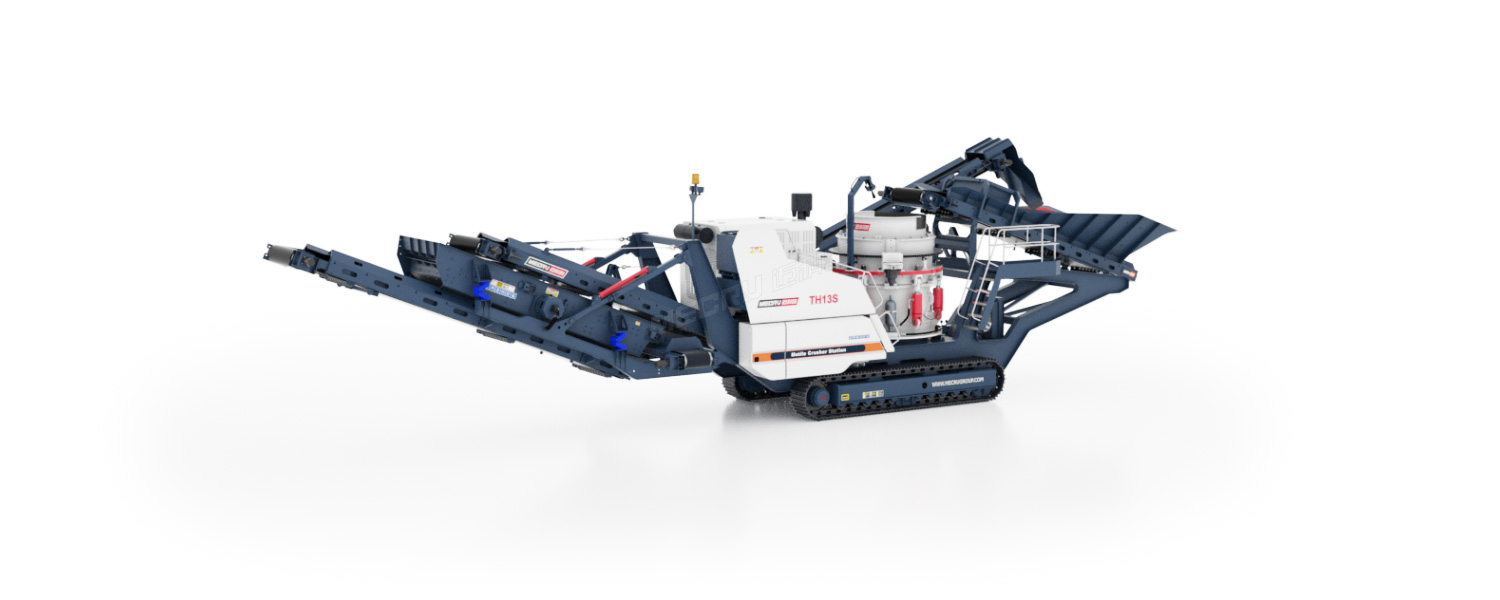

Tracked Cone Crusher

Product profile

The tracked cone crusher is the mobile crushing equipment with cone crusher as the main equipment for crushing and equipped with crawler driven chassis for moving and site conversion. Mecru  tracked cone crusher has the characteristics of large processing capacity, high production efficiency and strong adaptability.

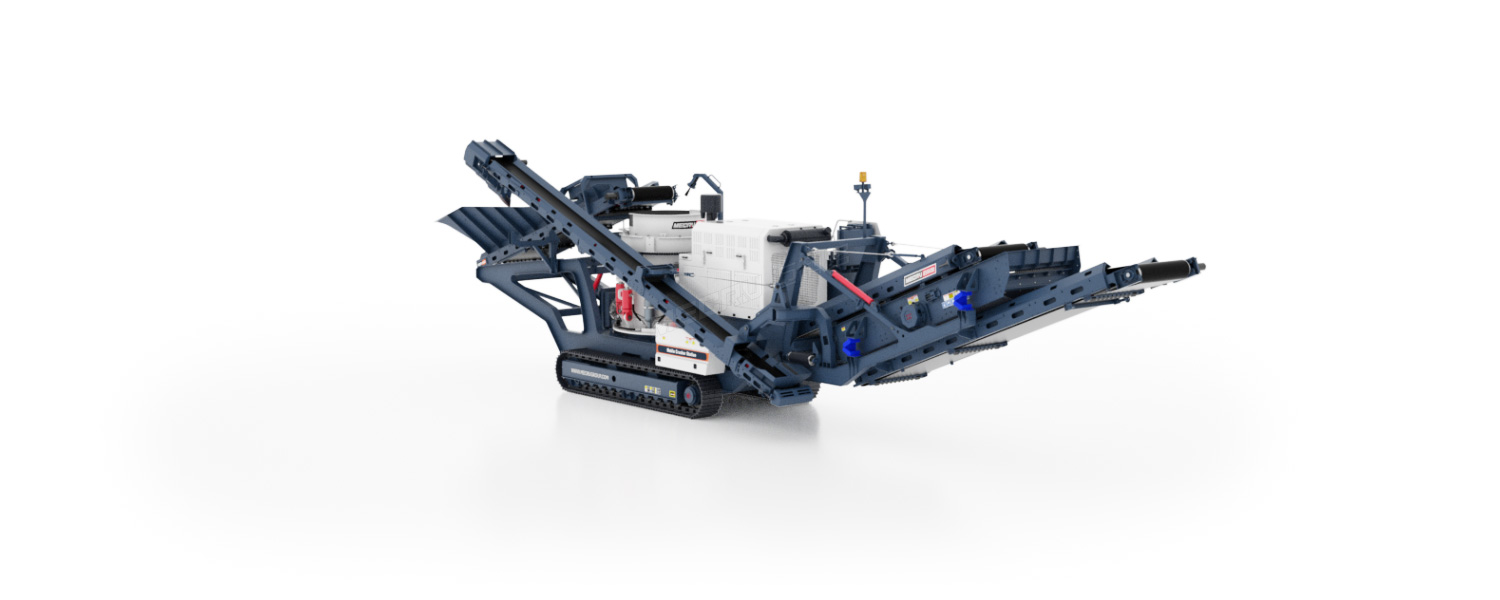

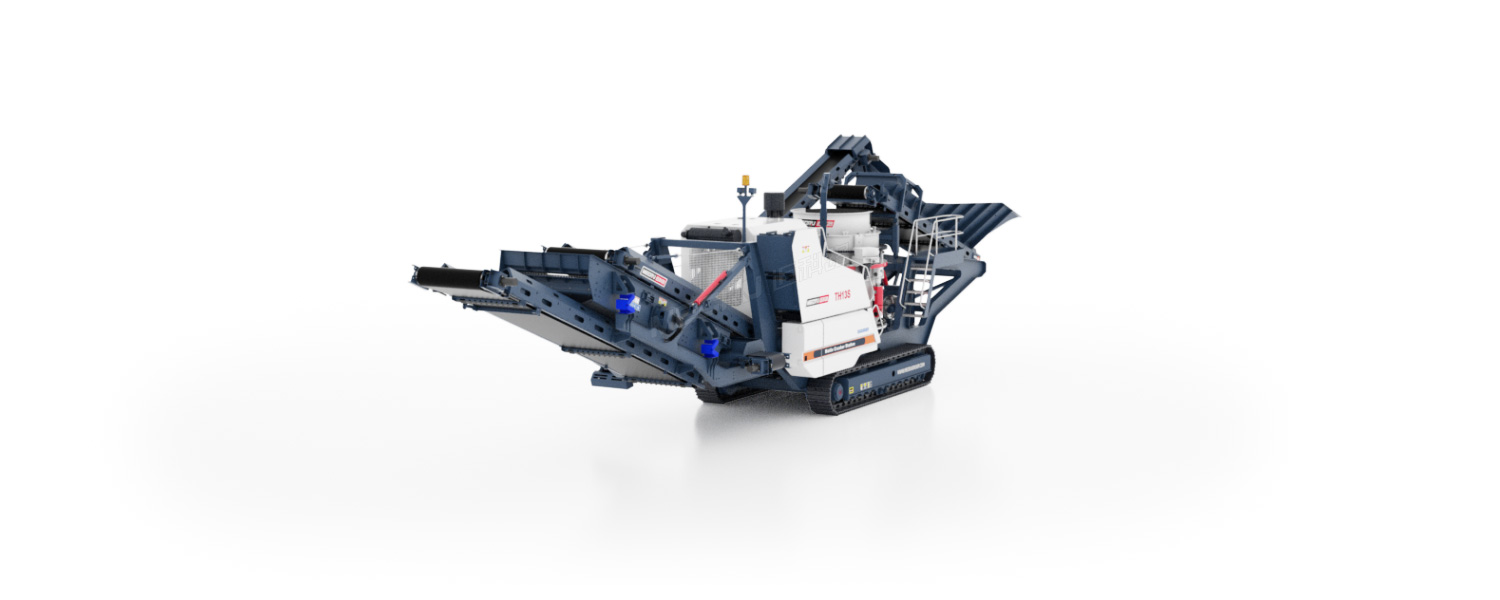

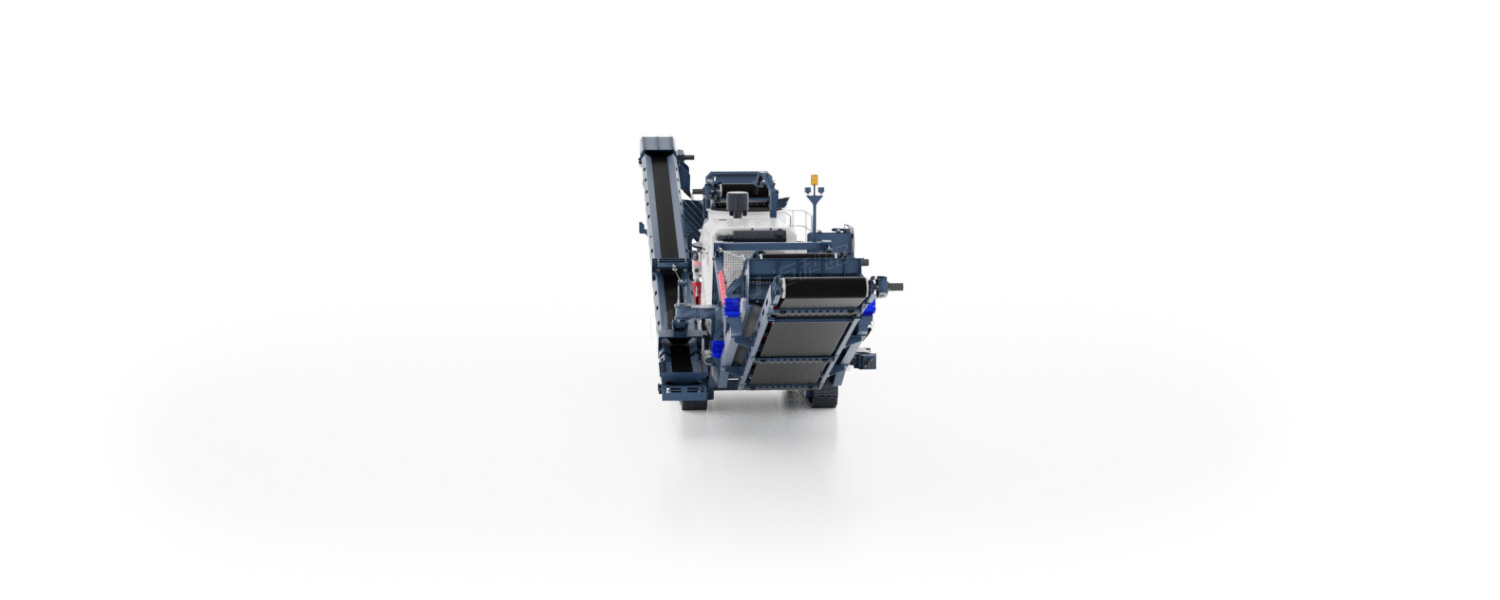

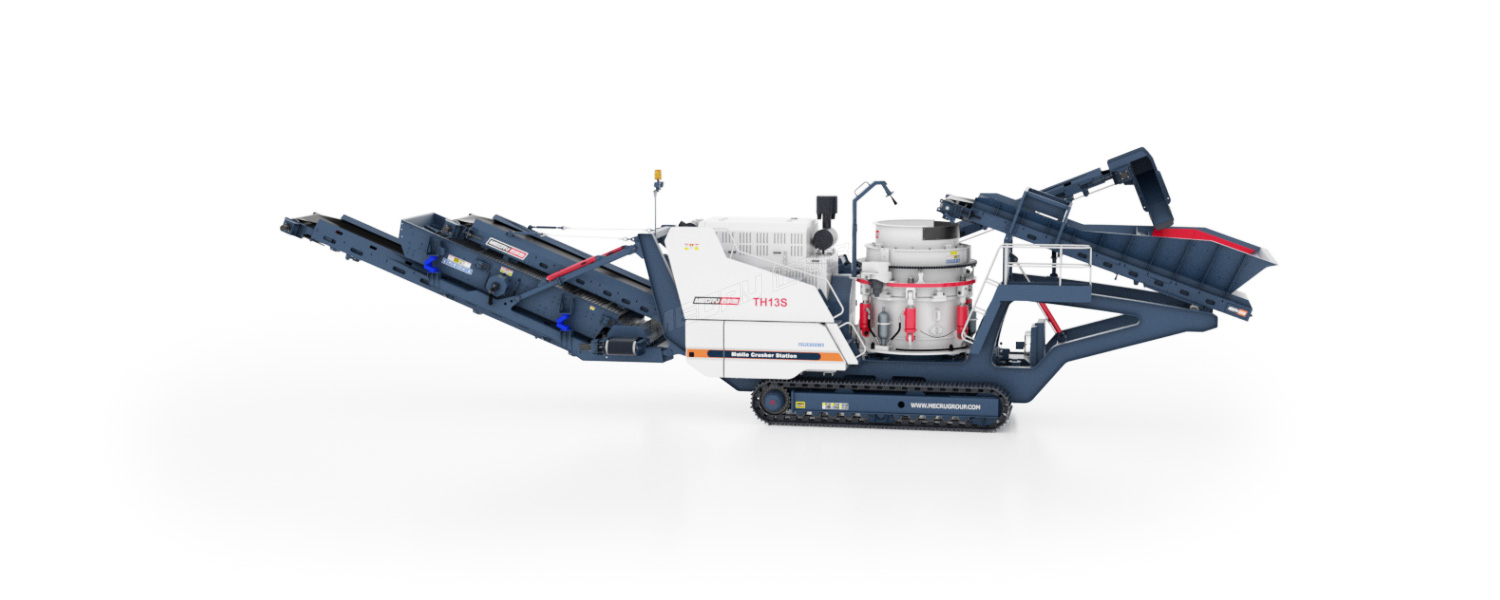

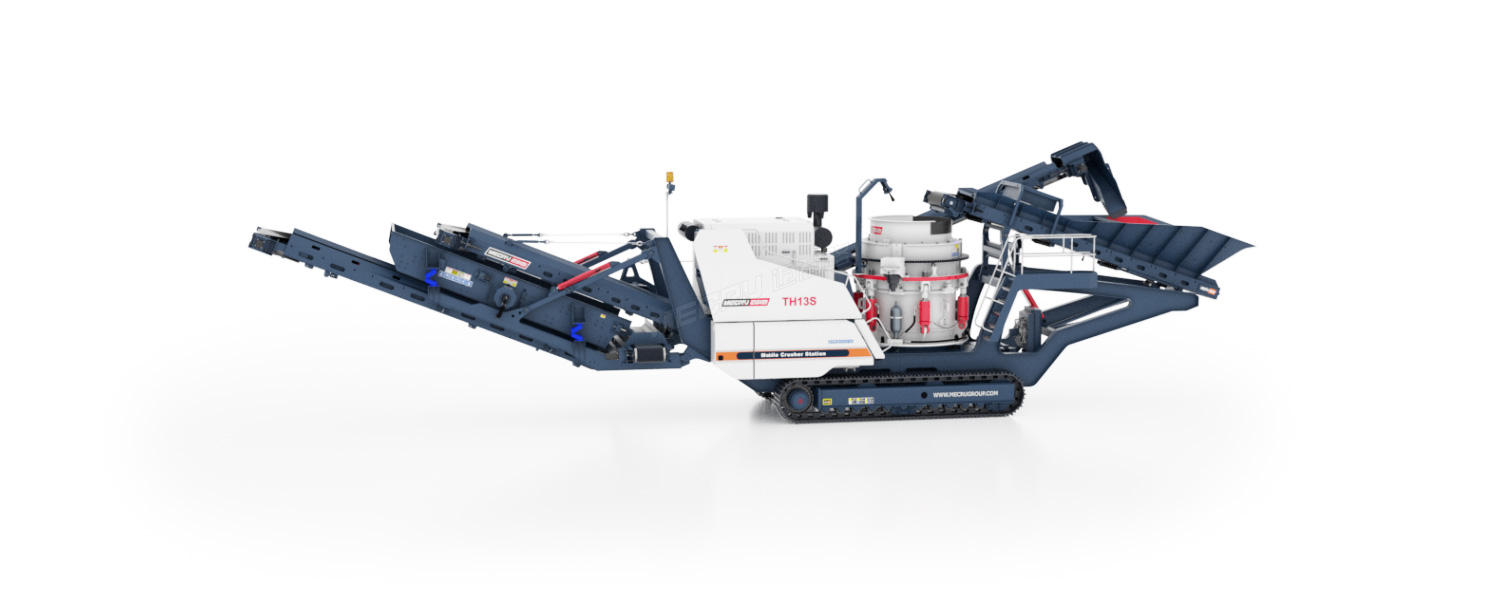

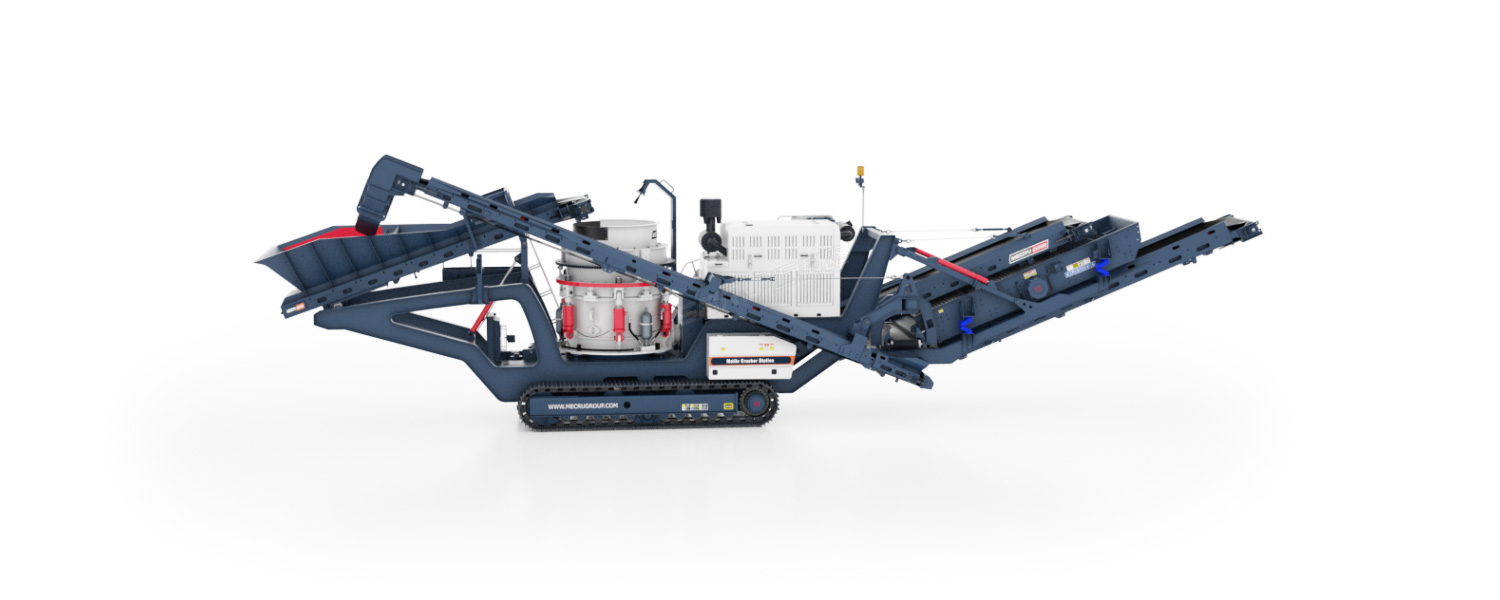

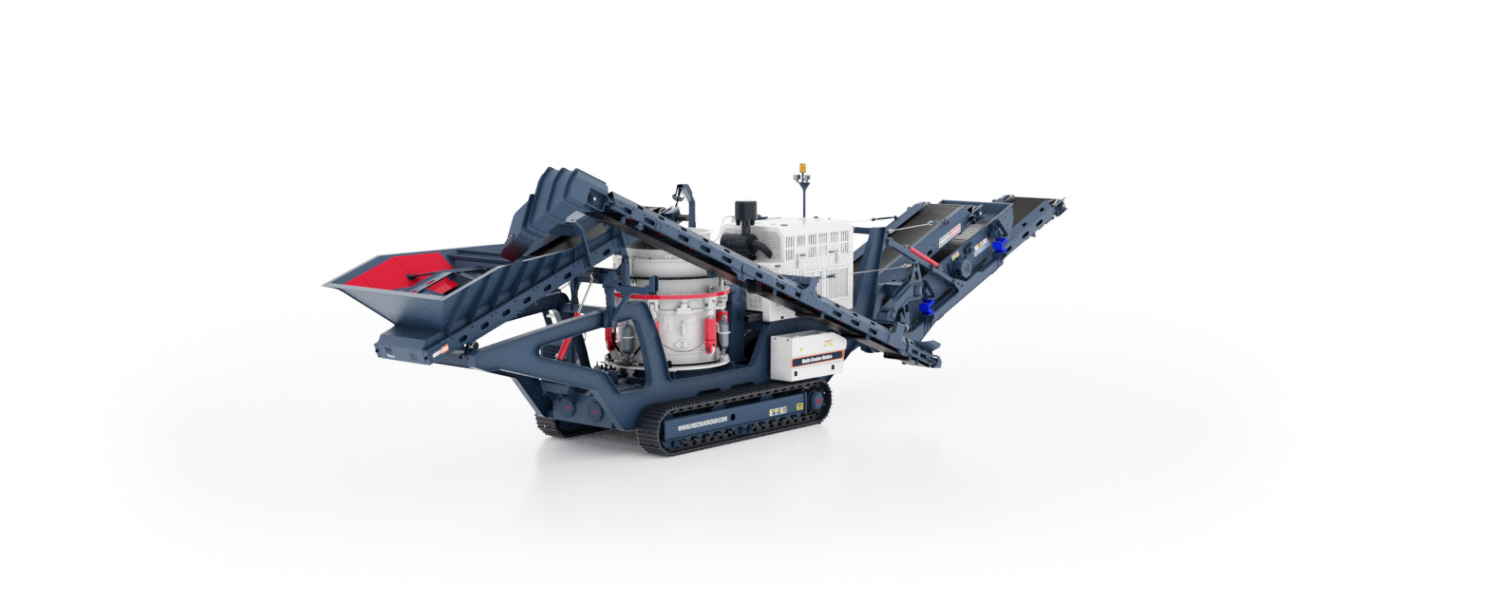

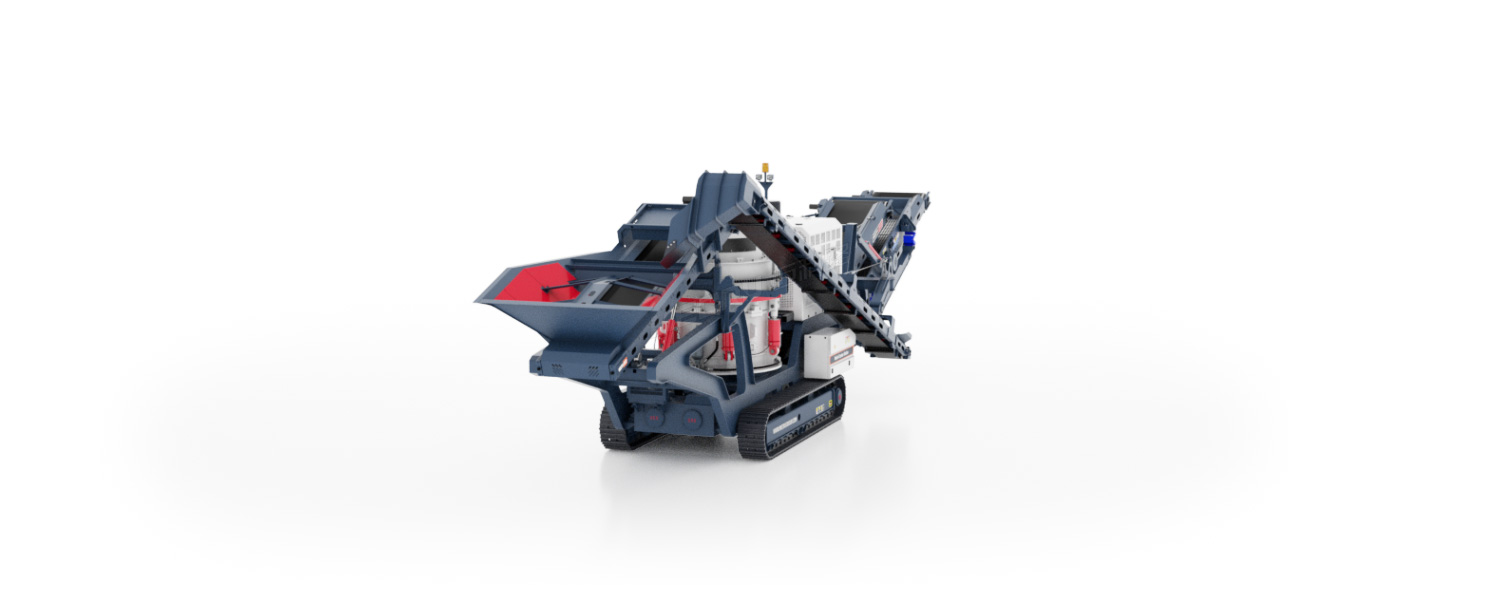

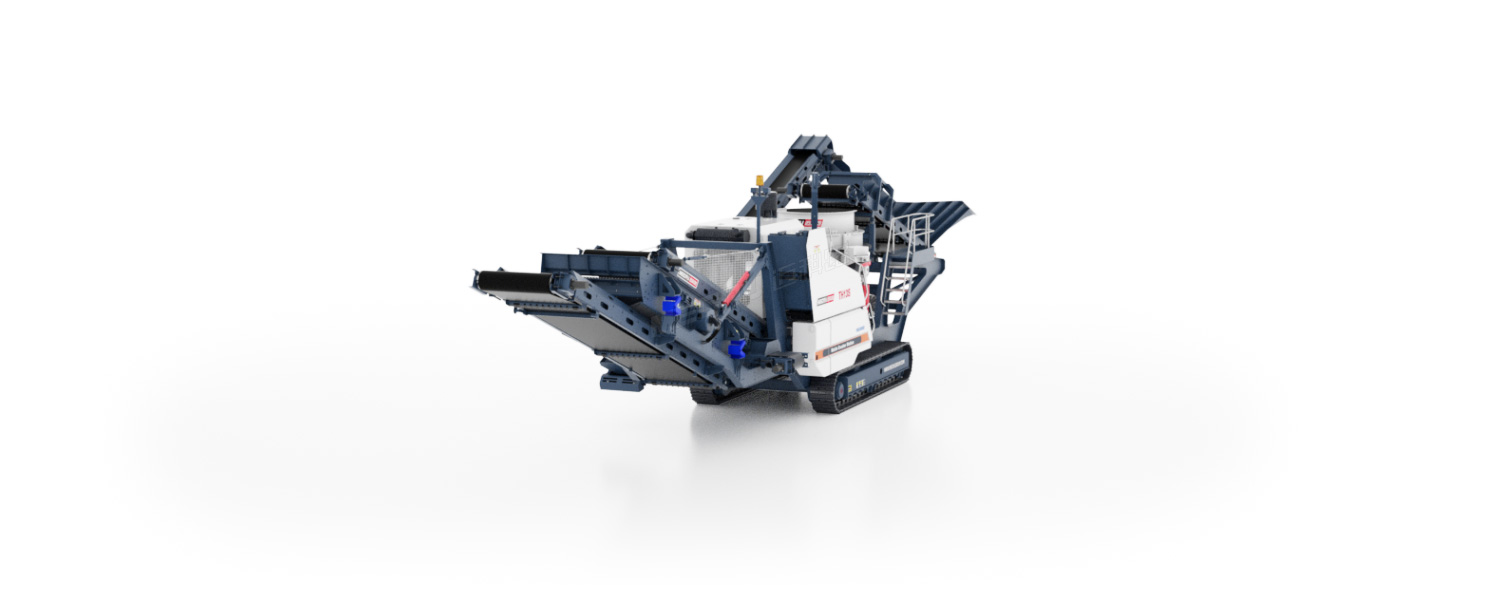

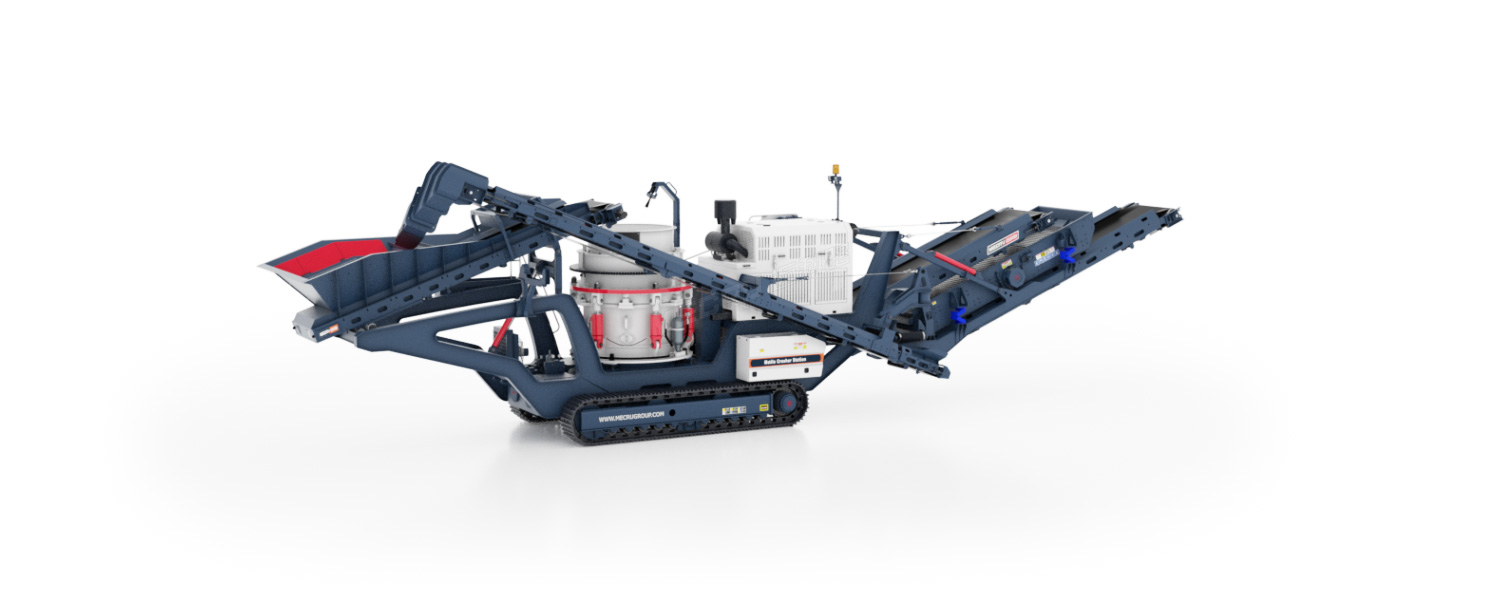

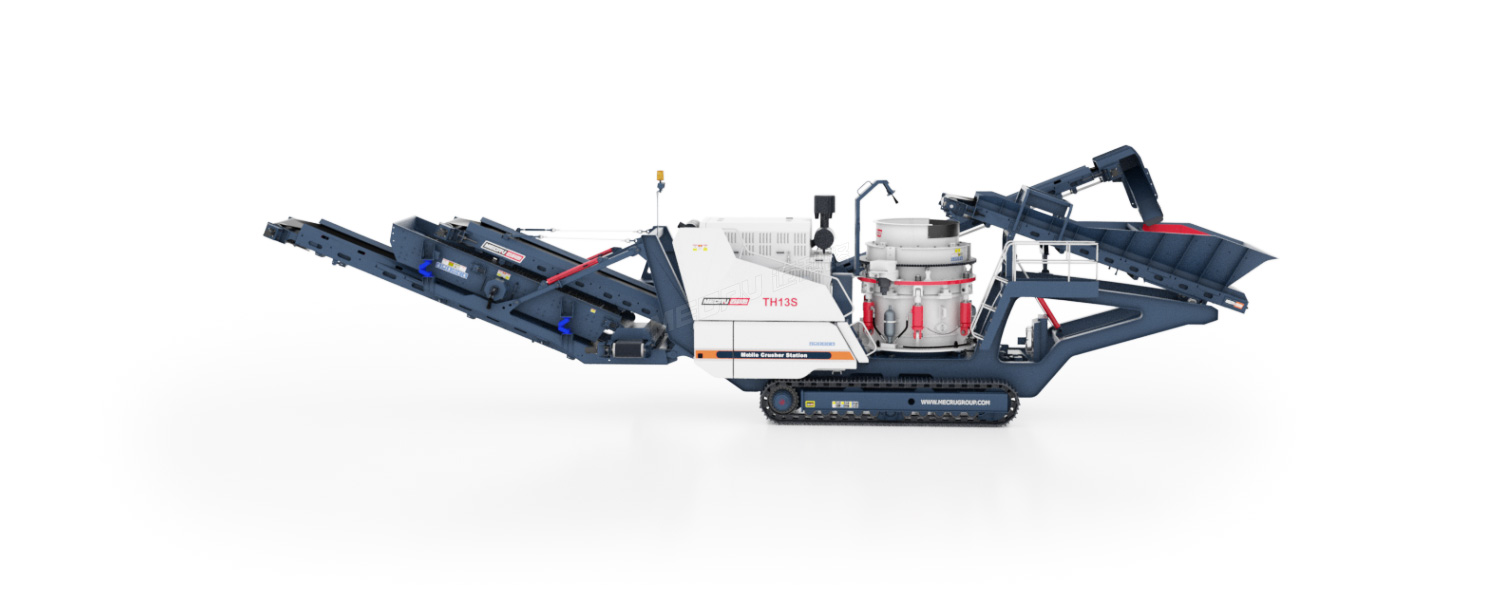

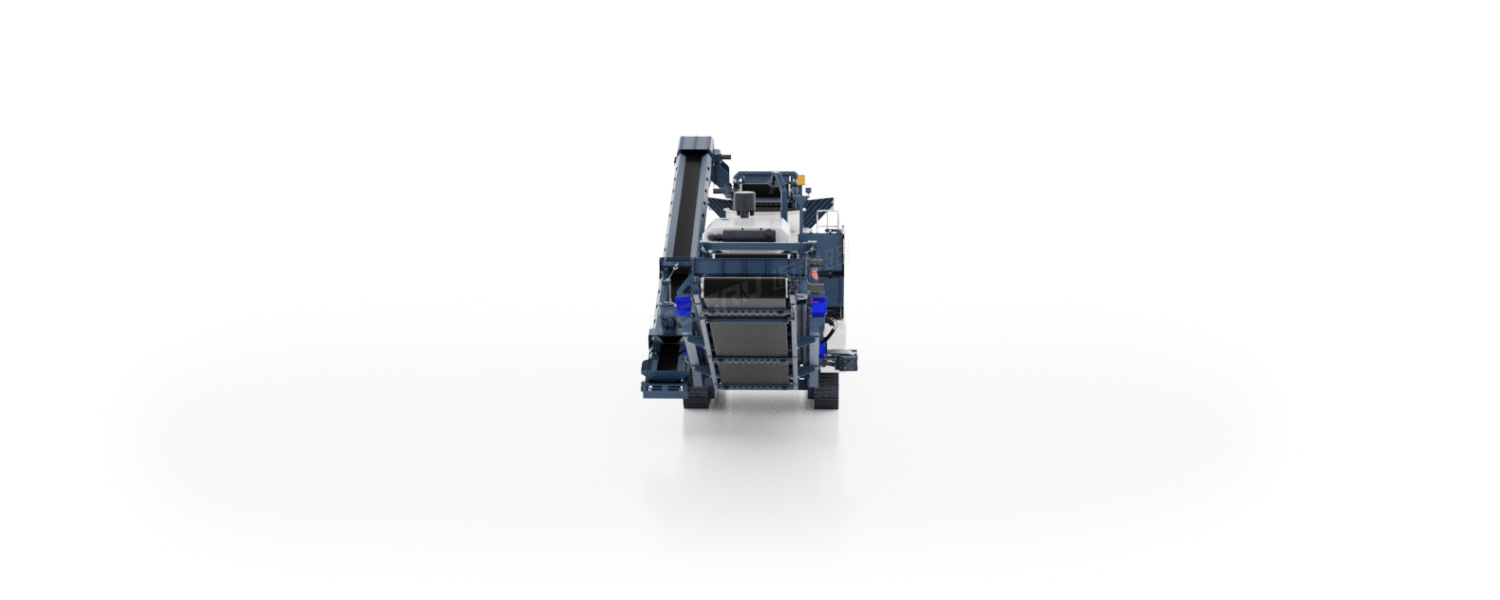

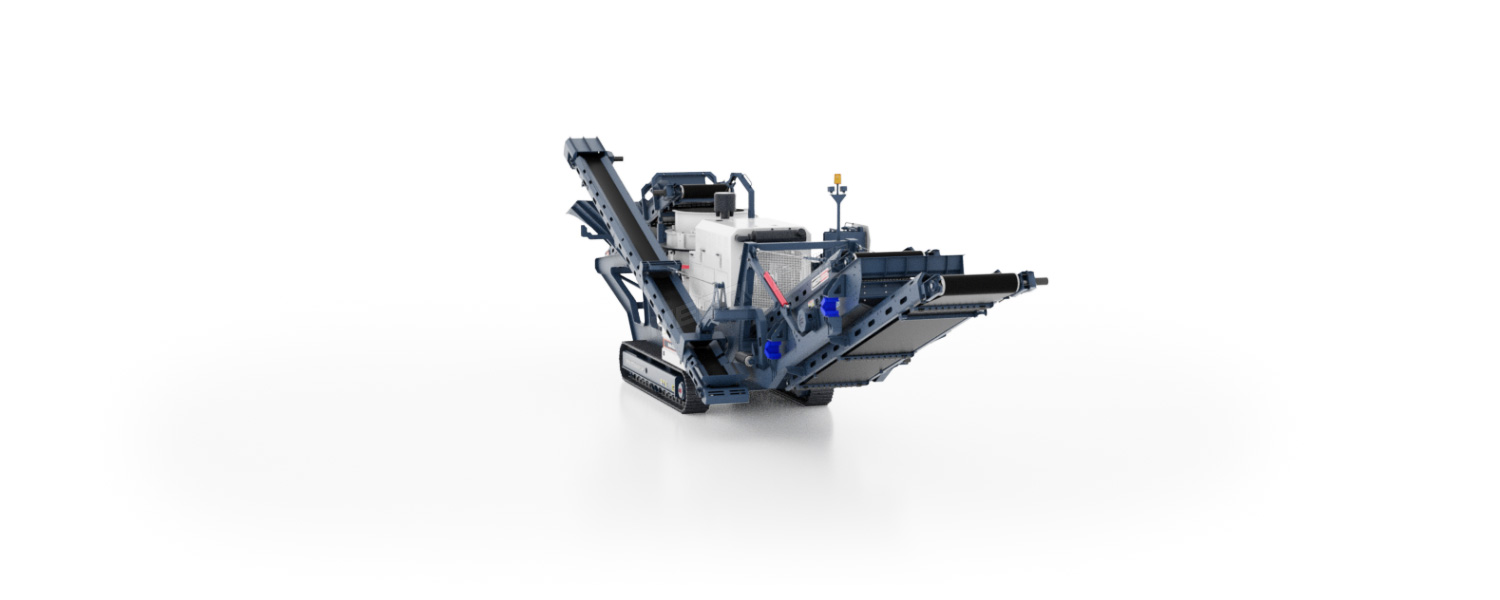

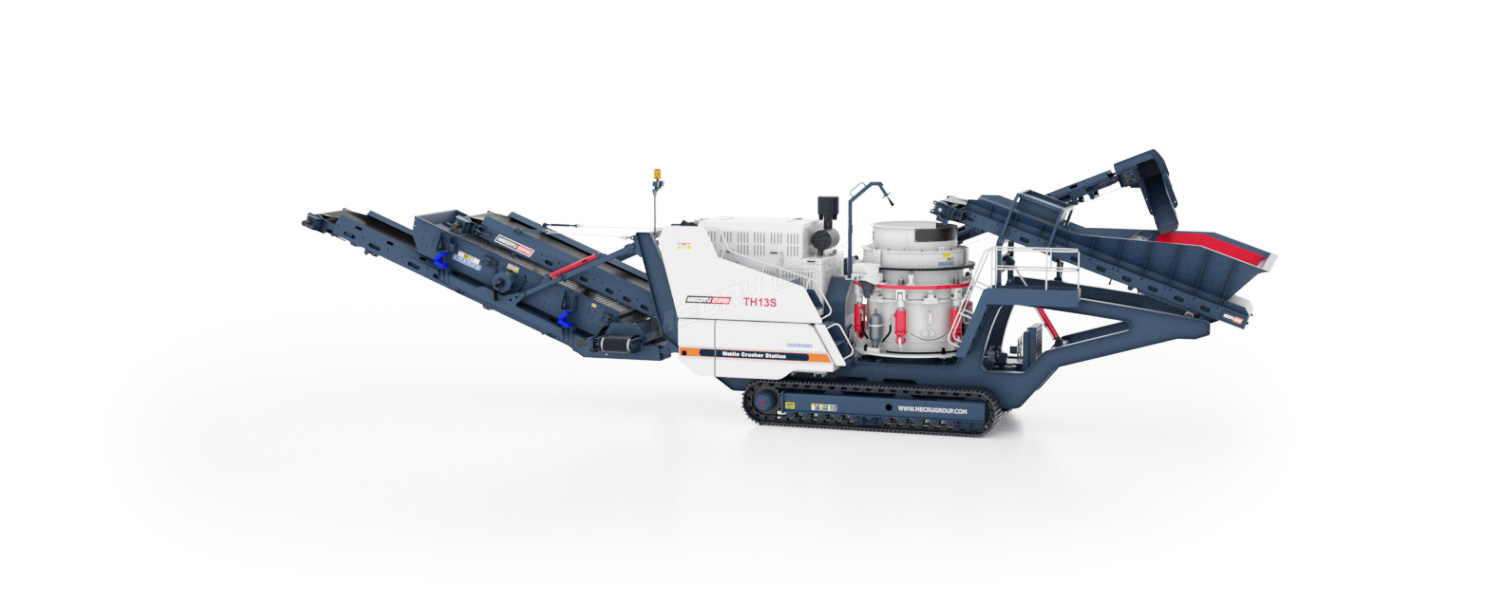

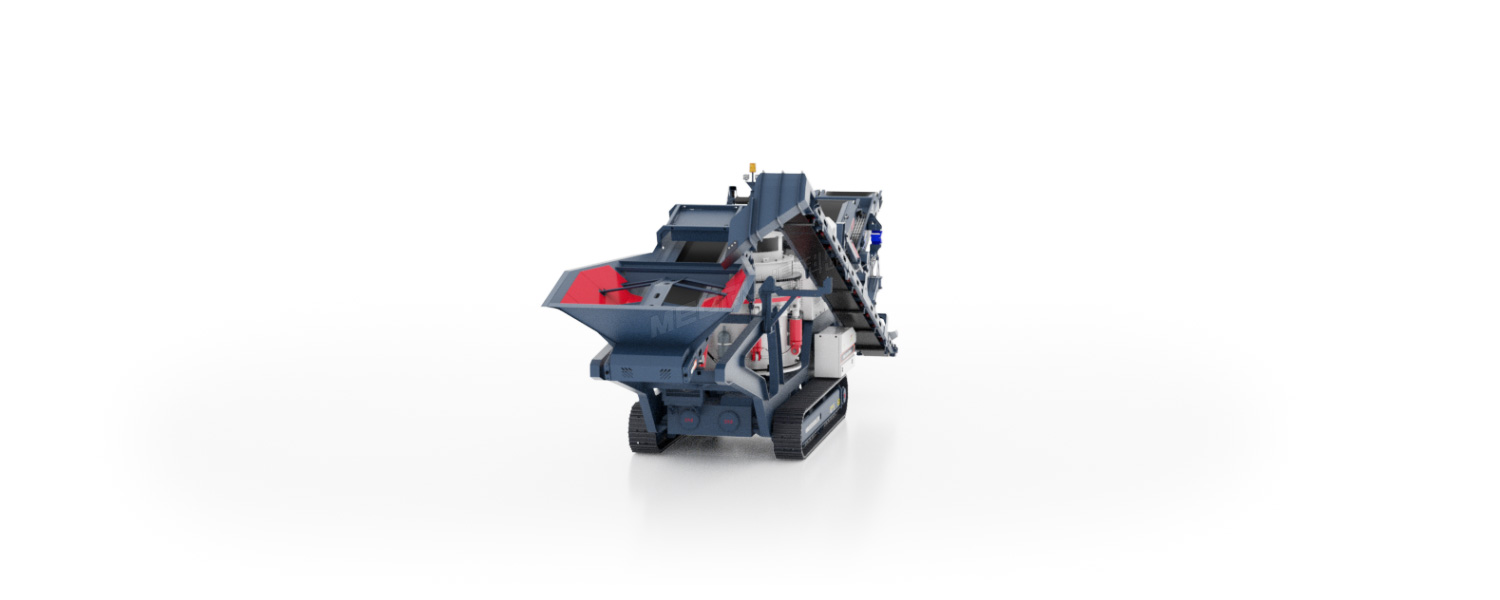

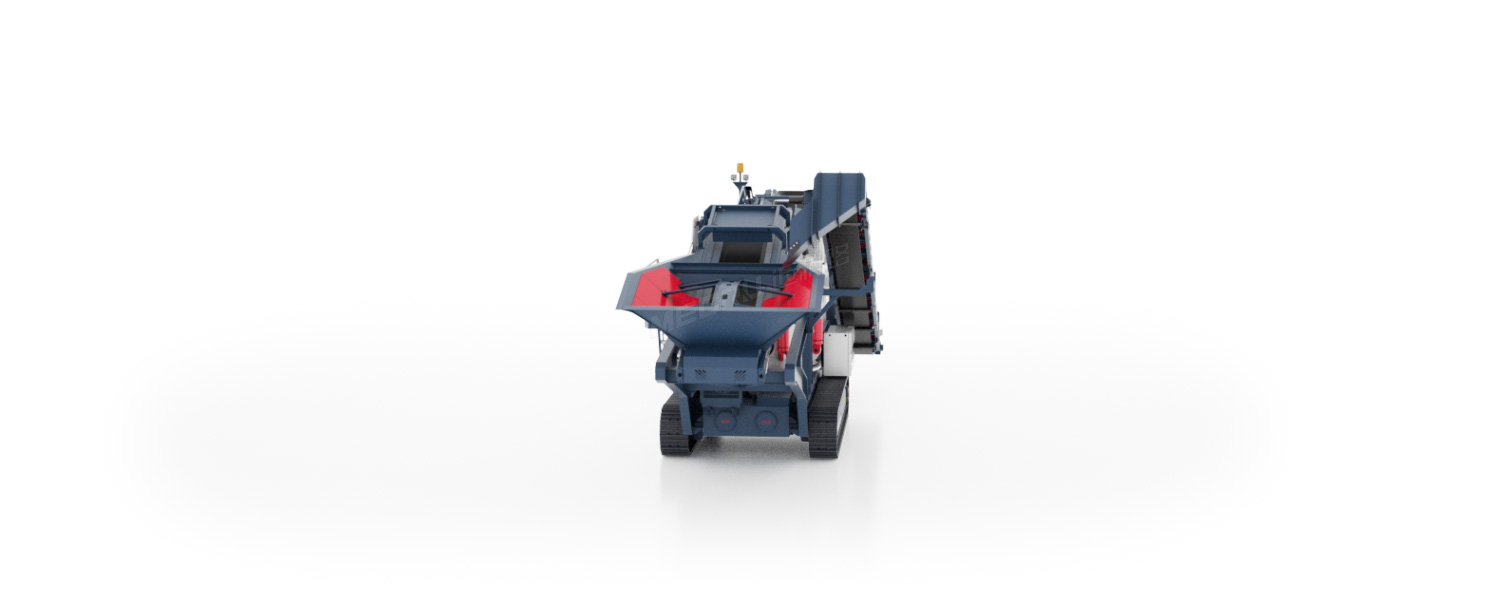

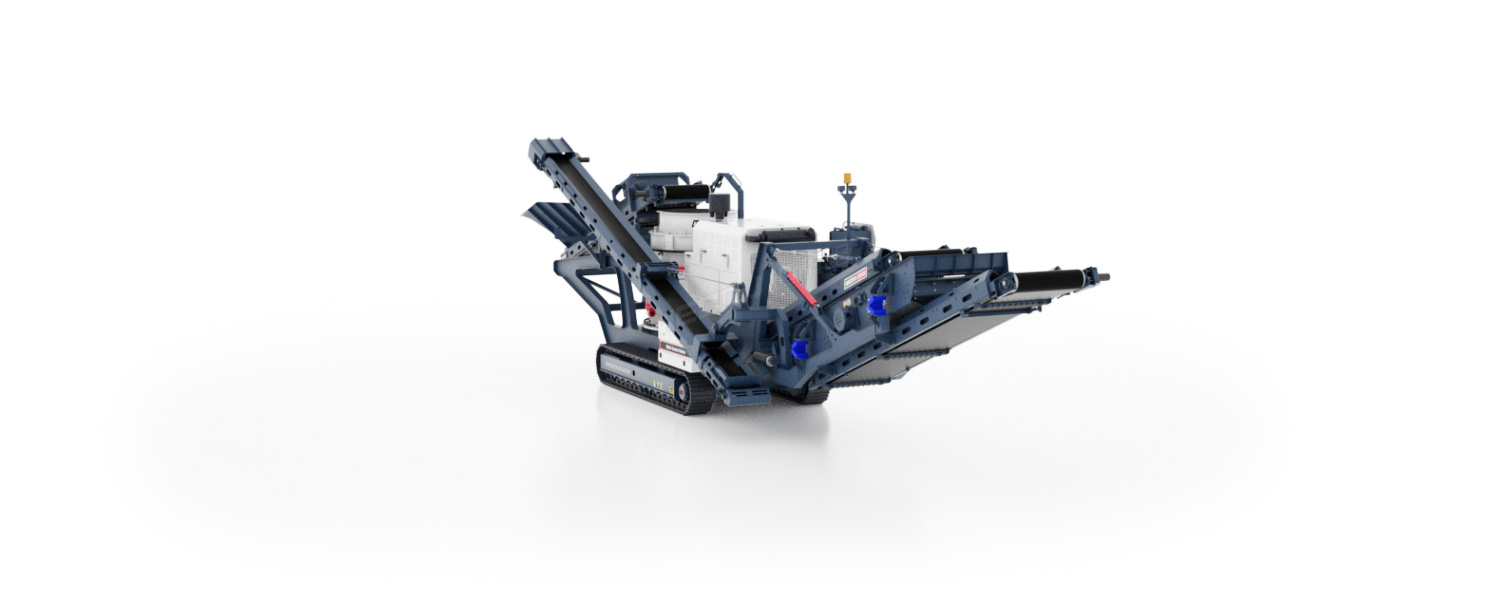

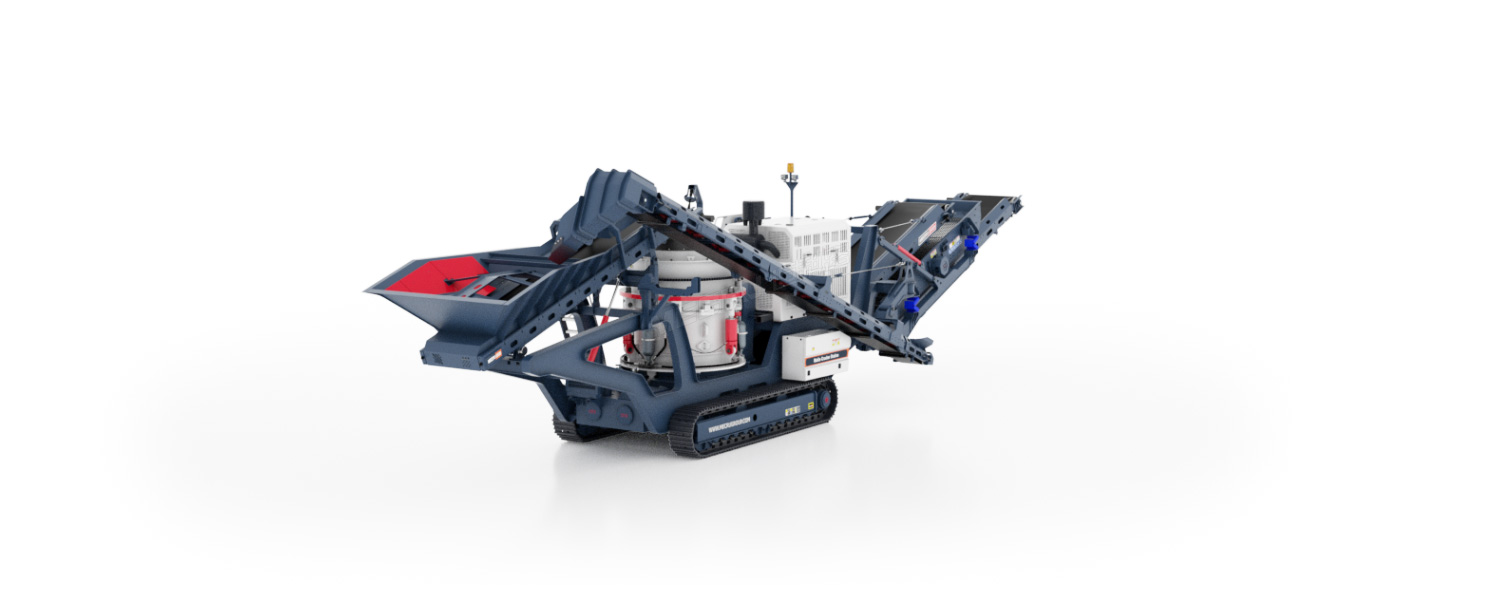

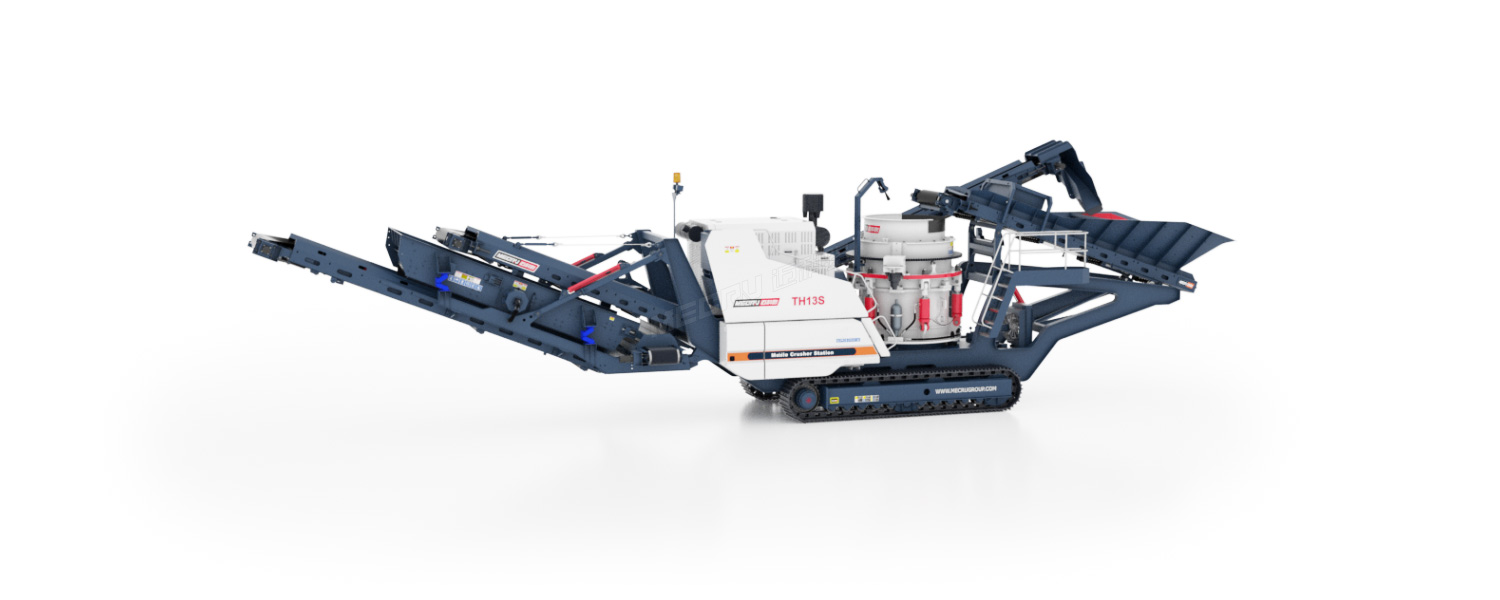

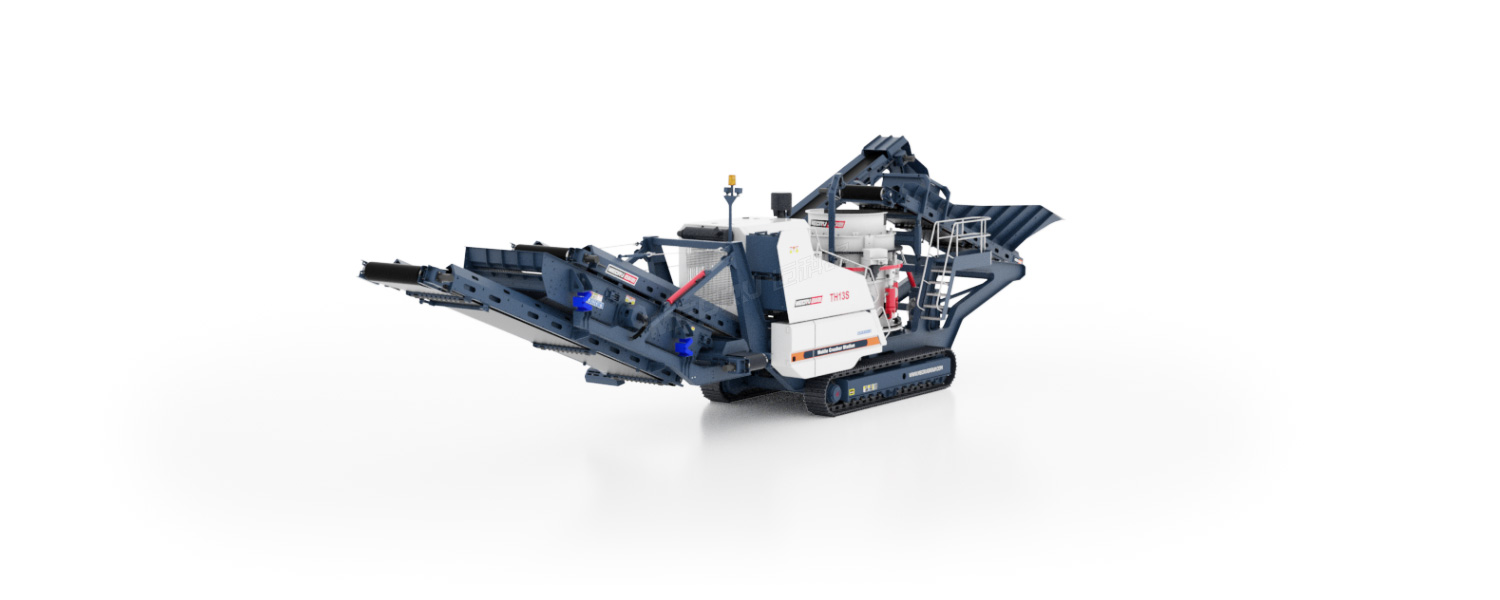

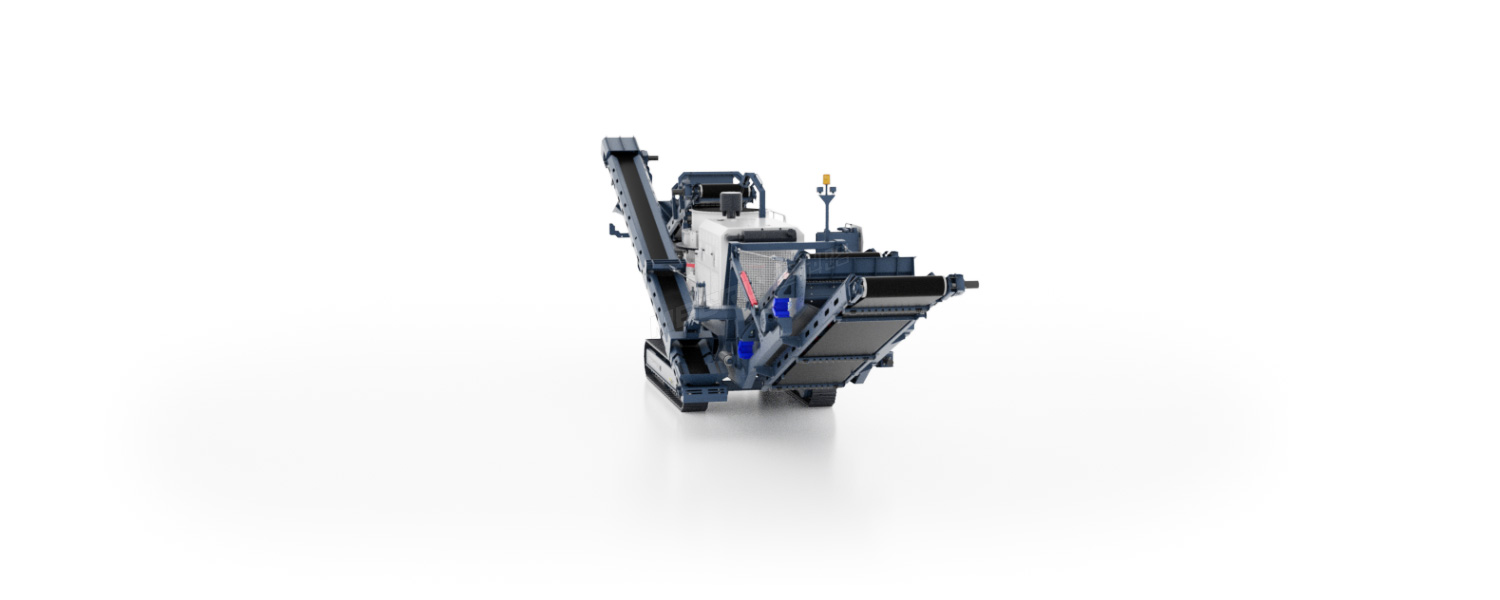

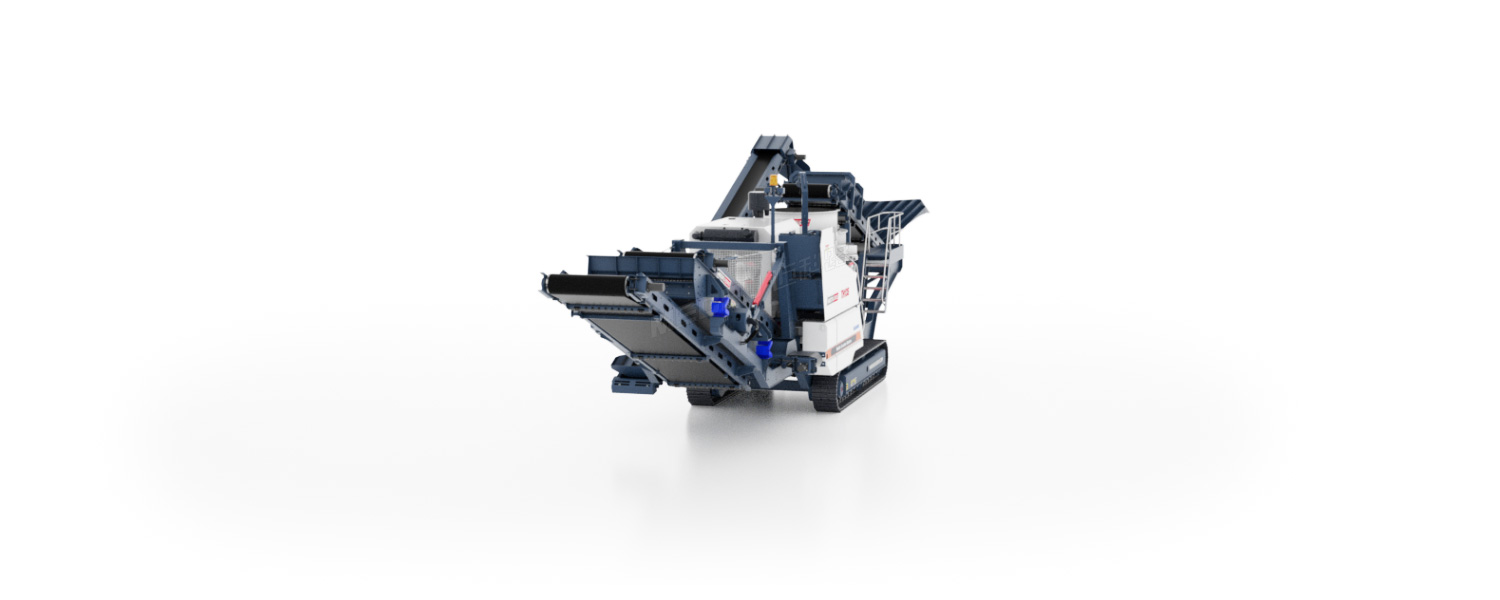

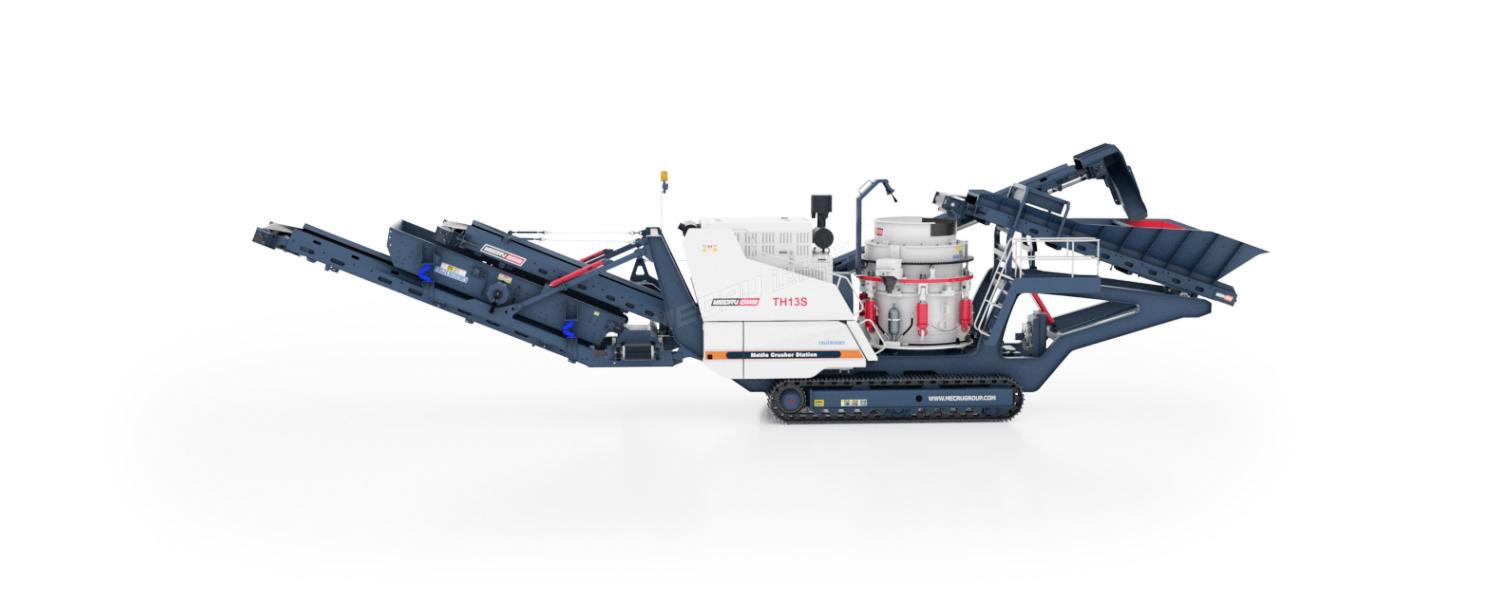

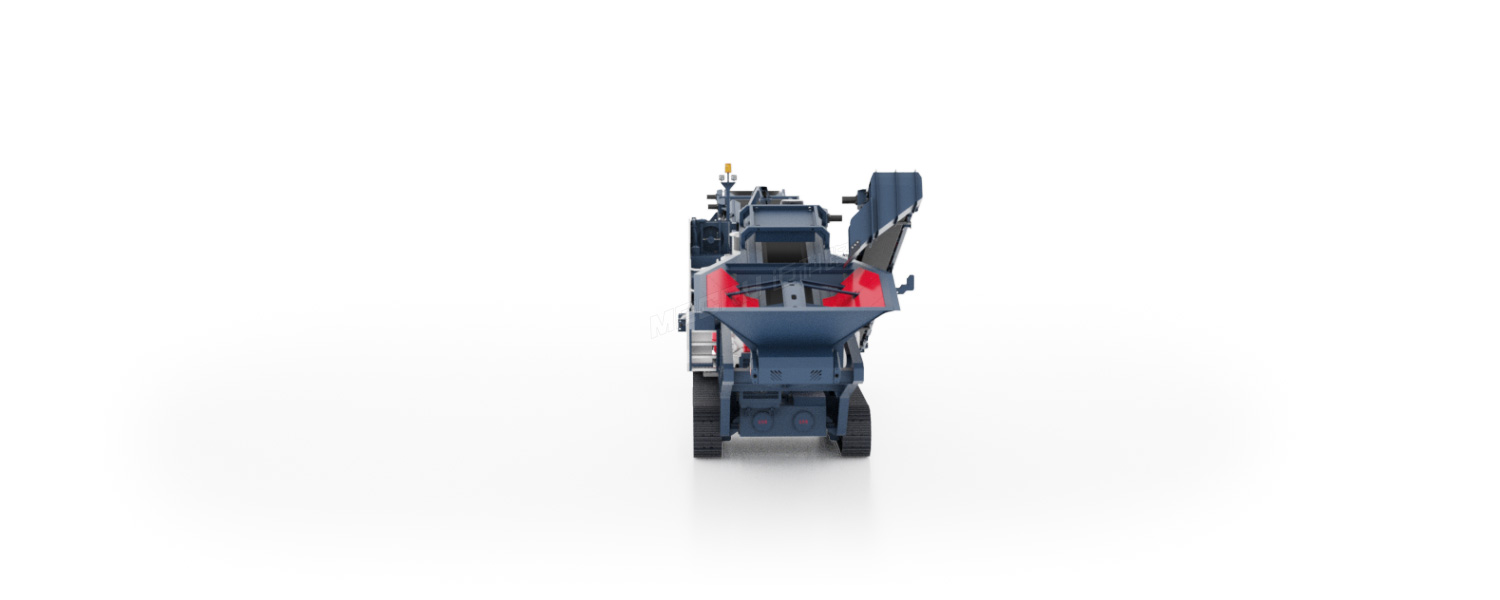

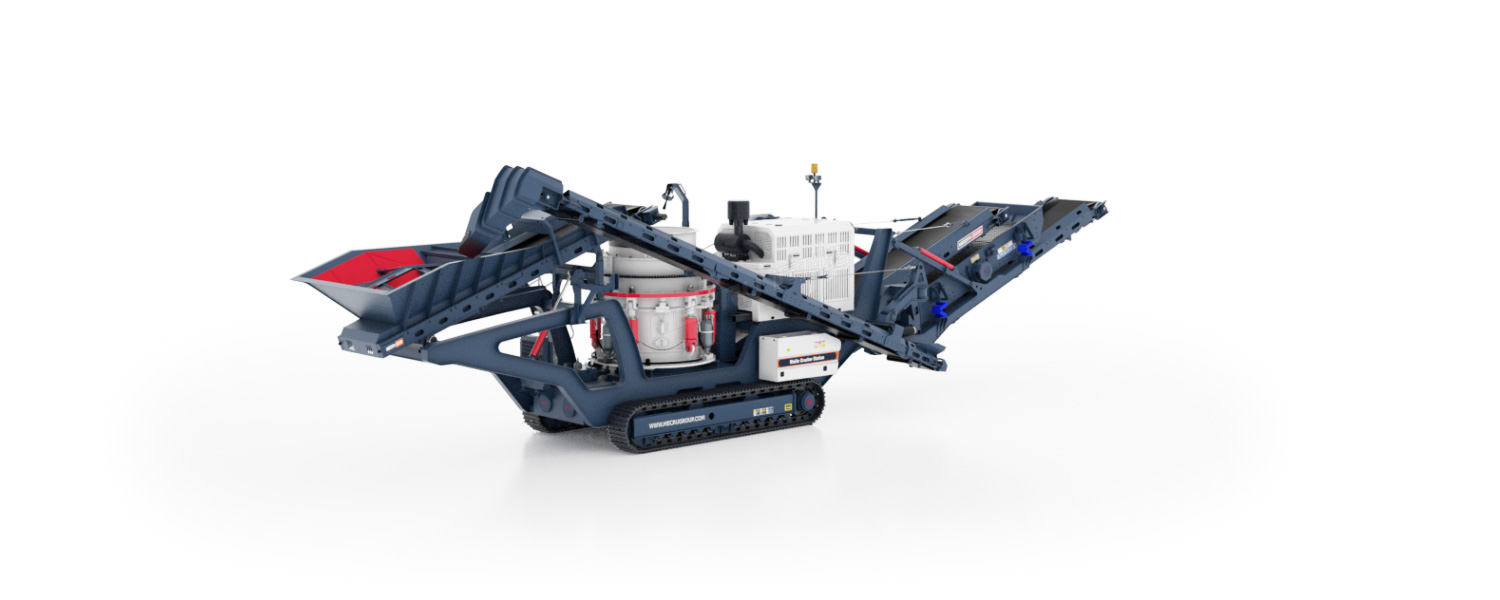

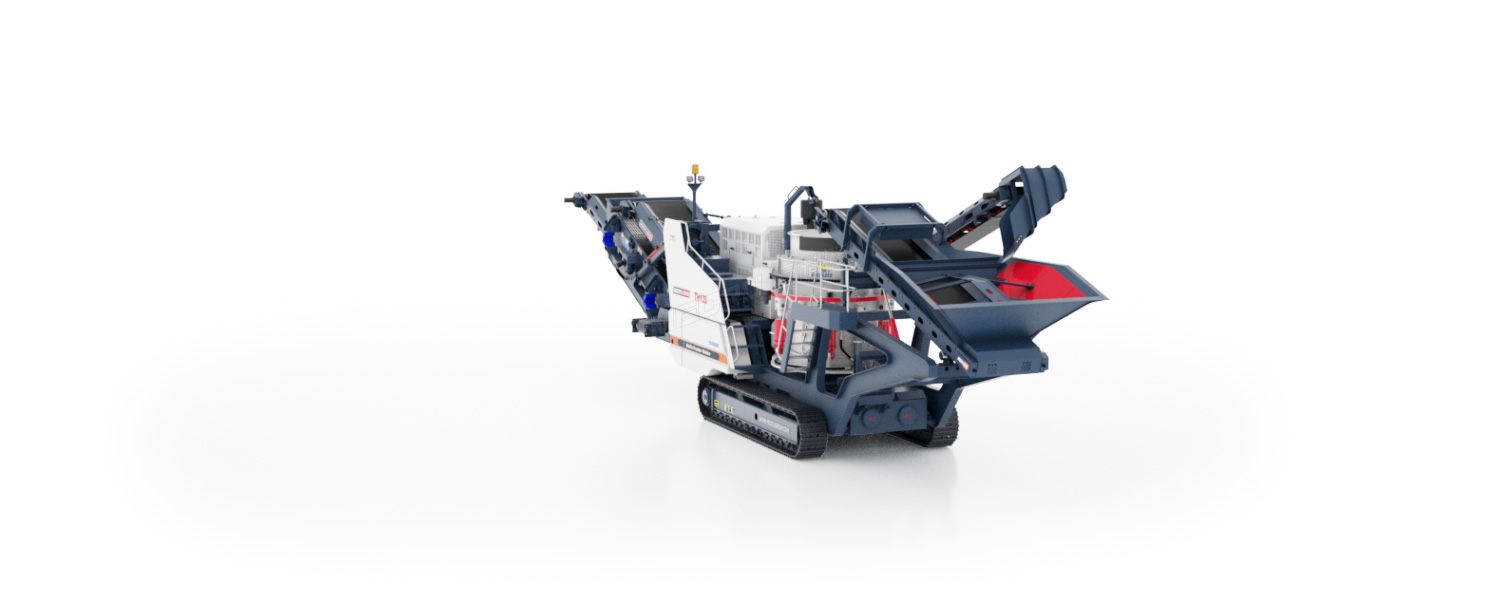

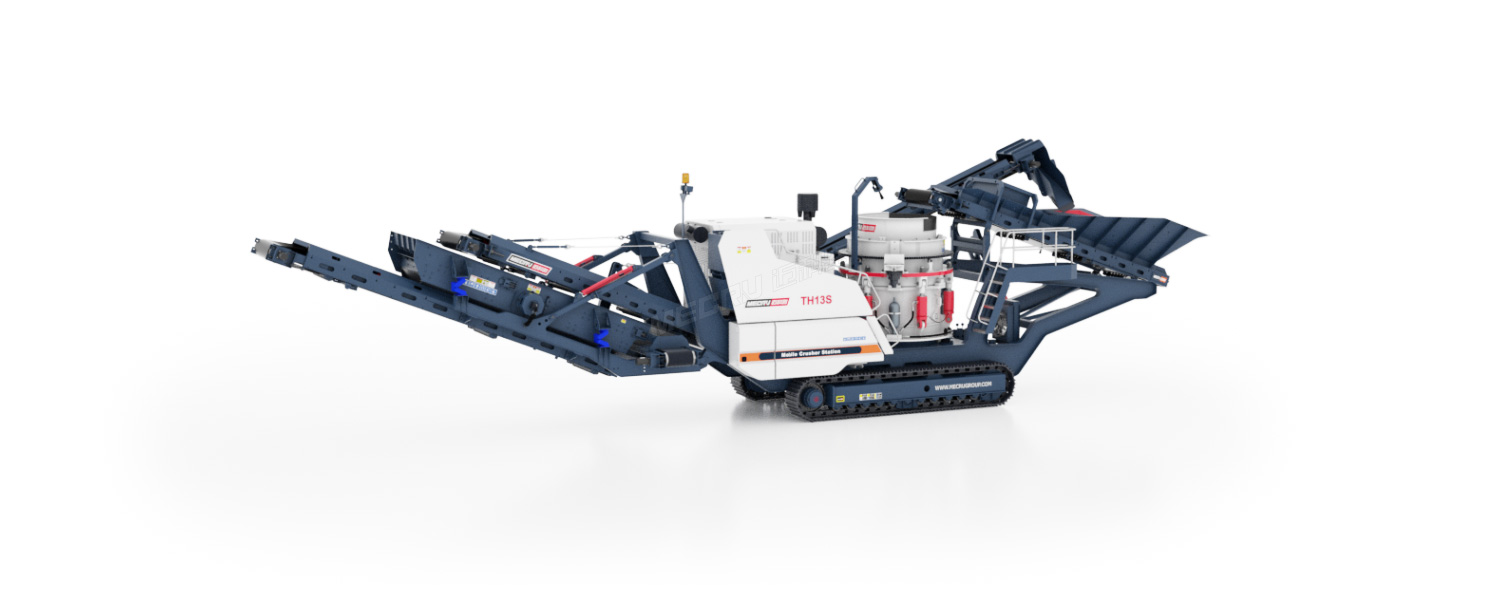

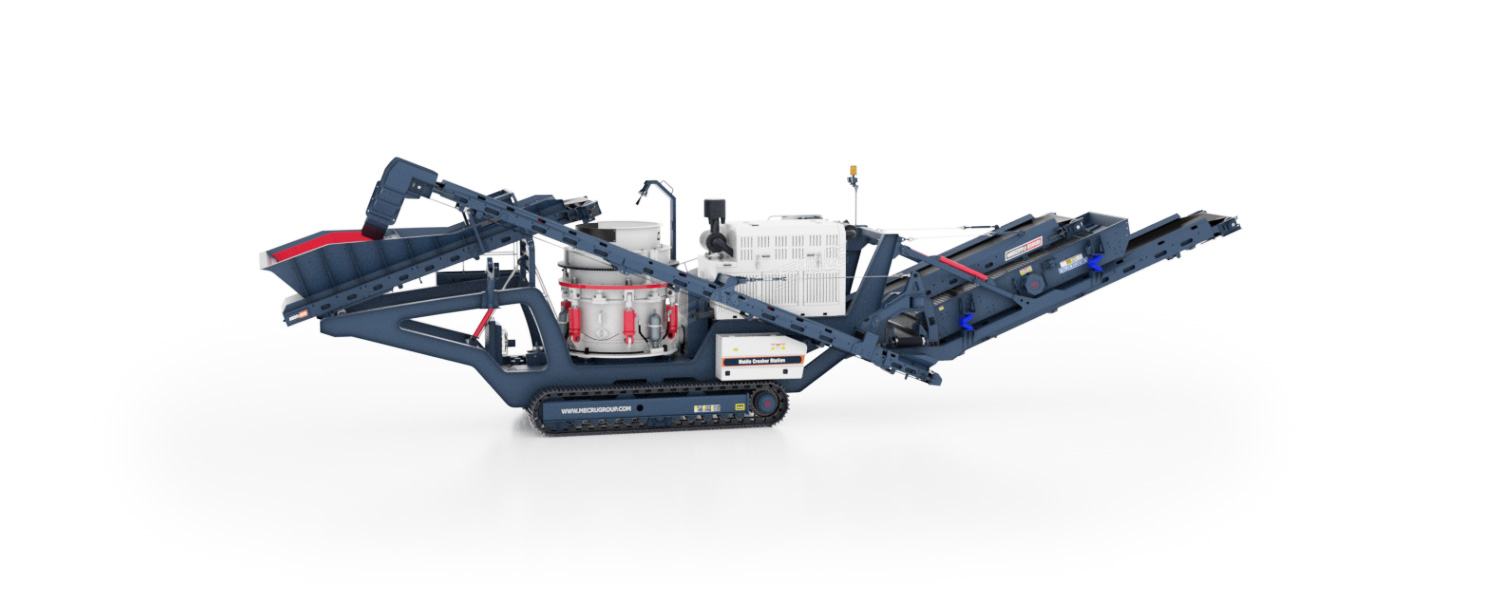

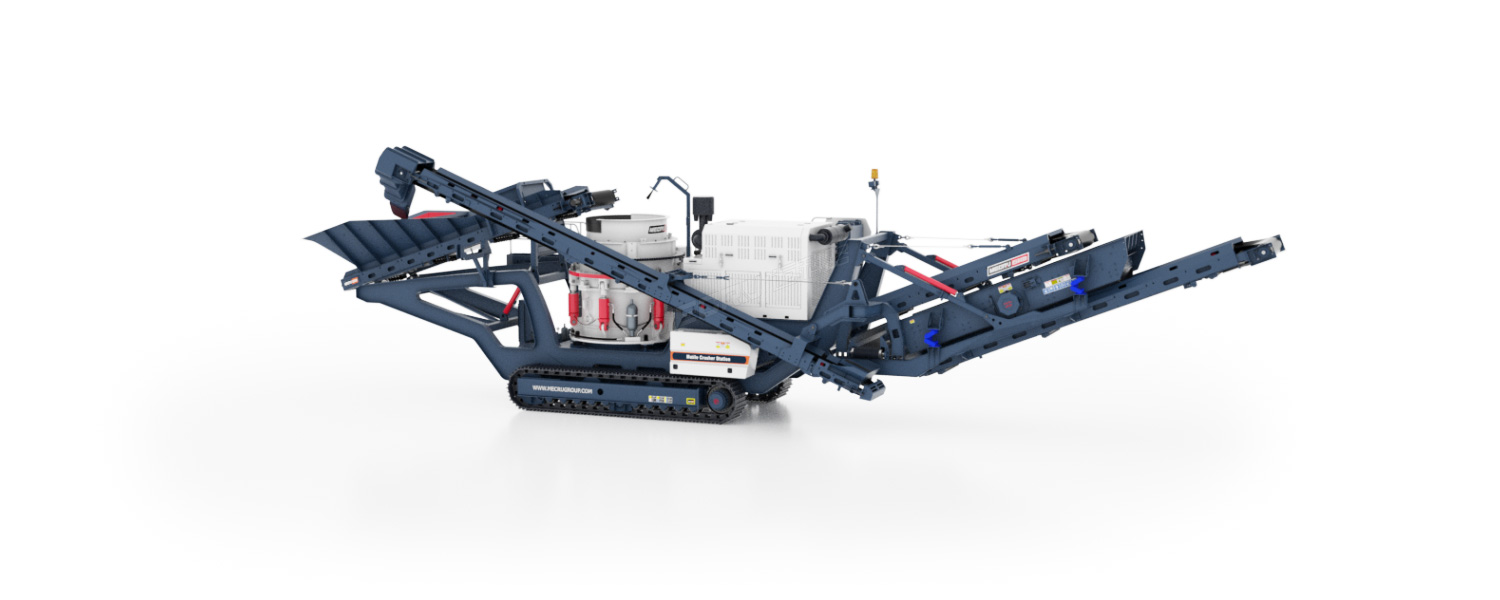

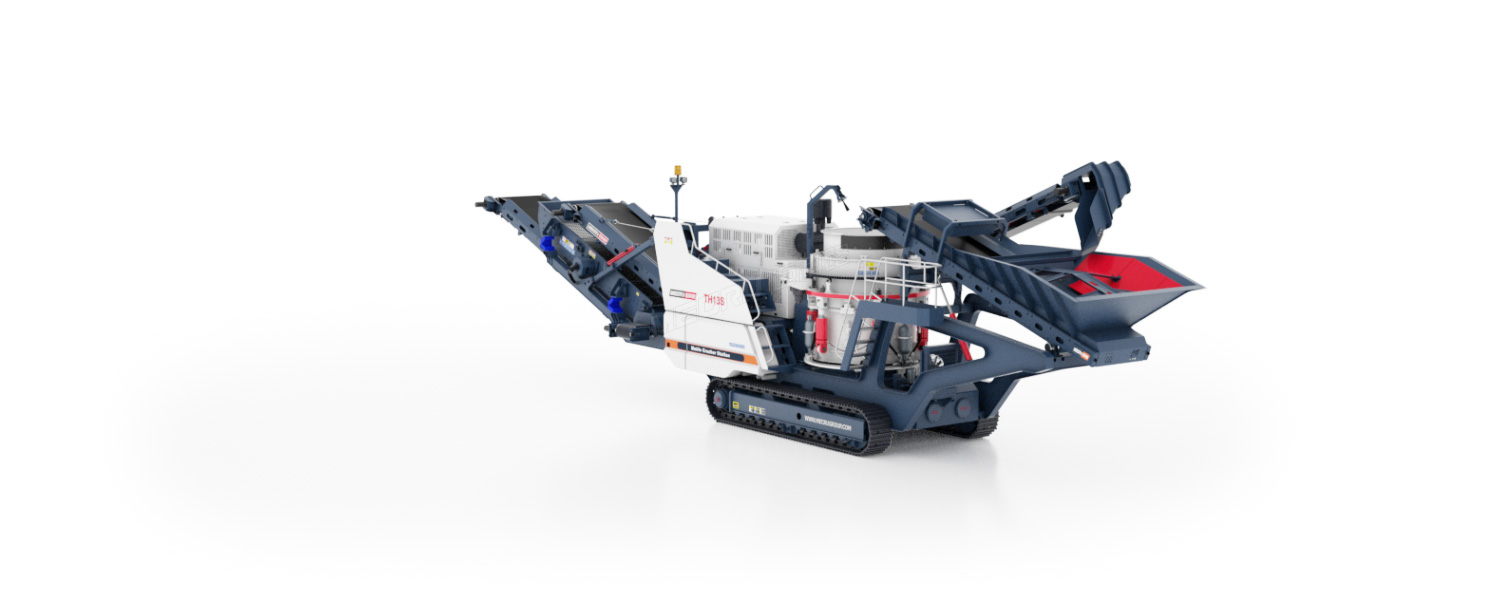

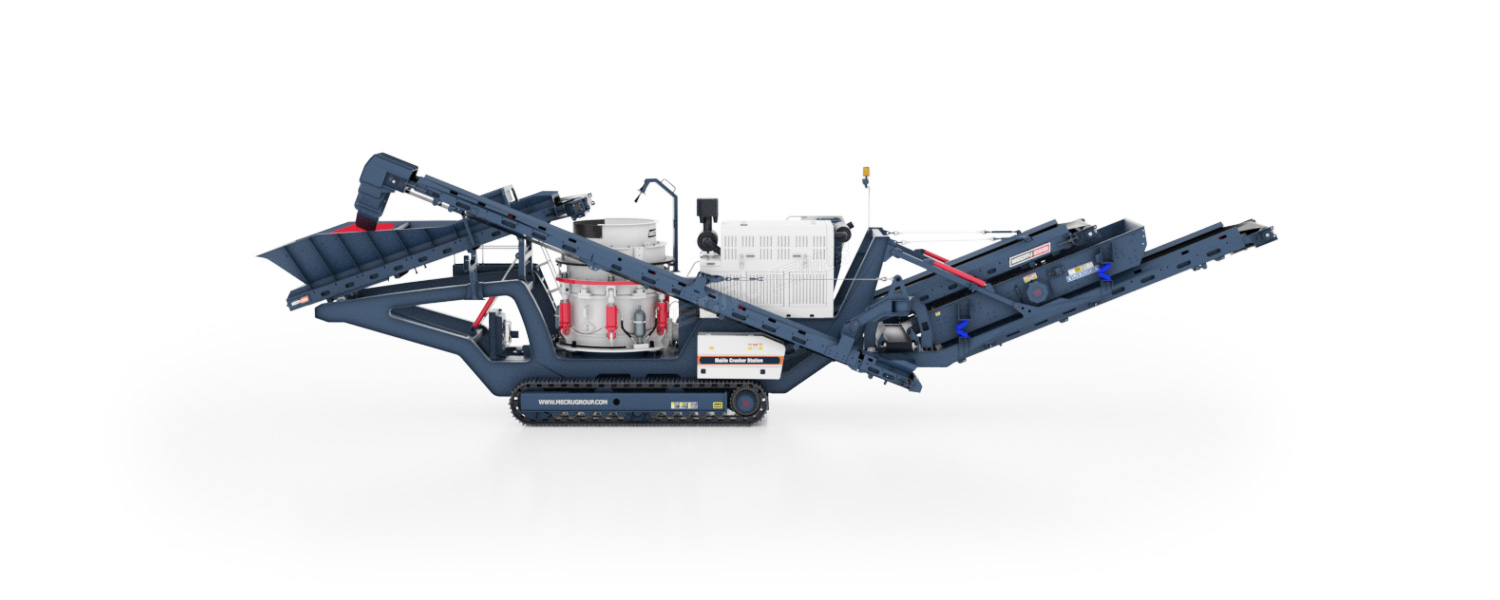

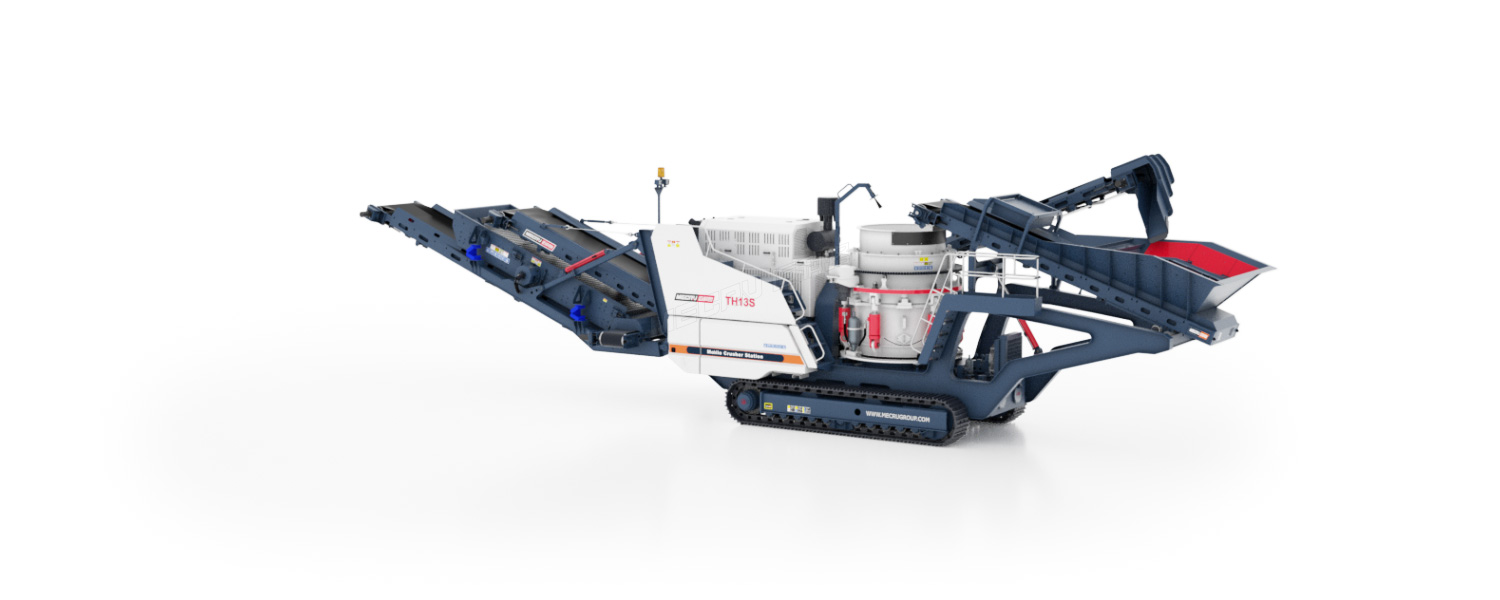

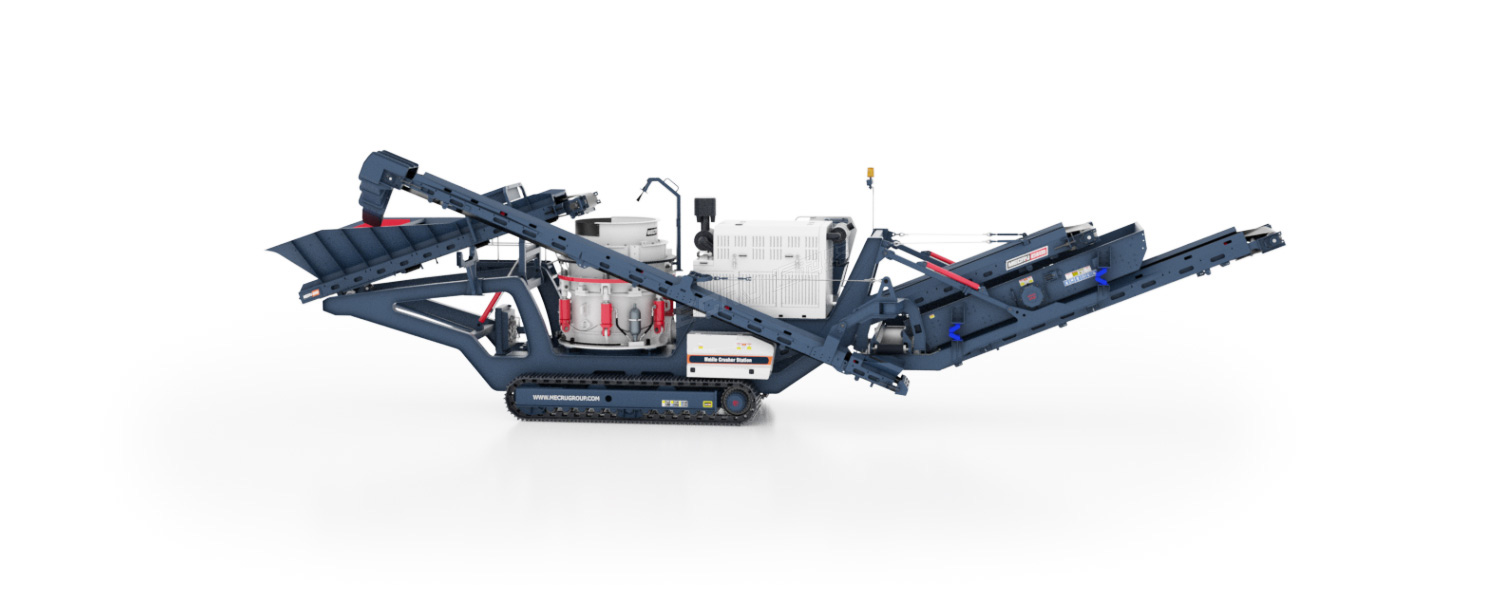

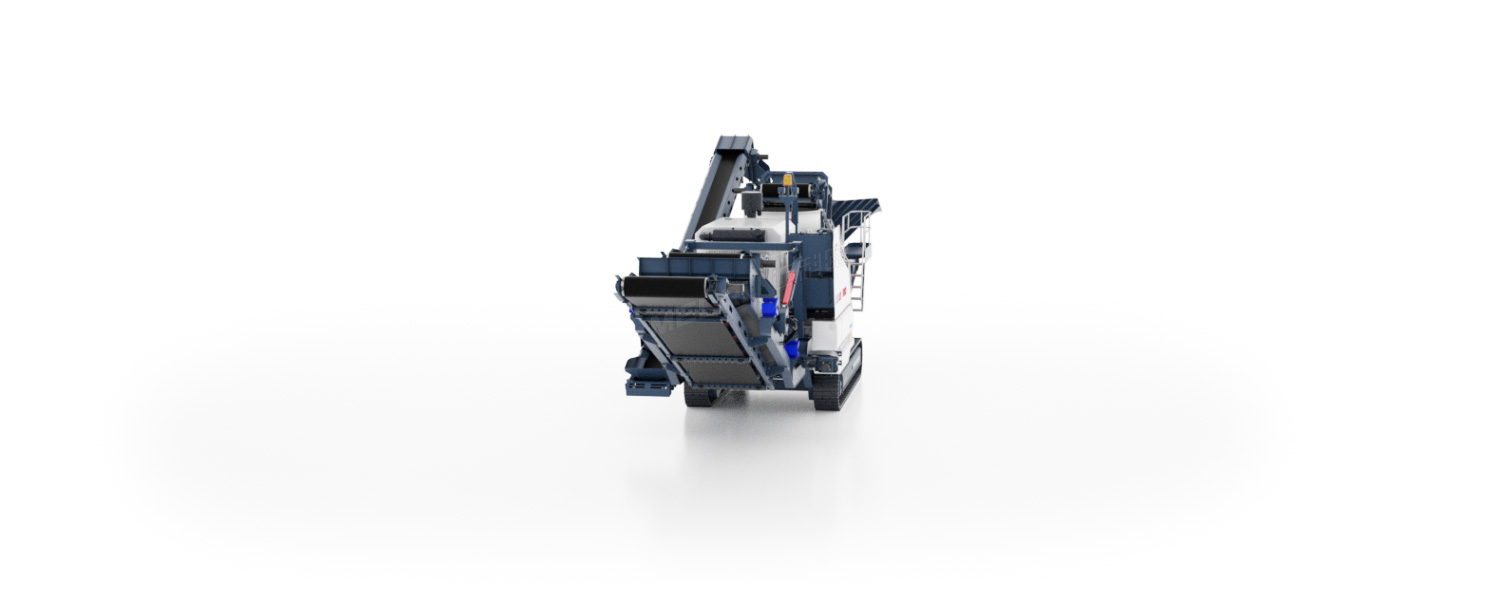

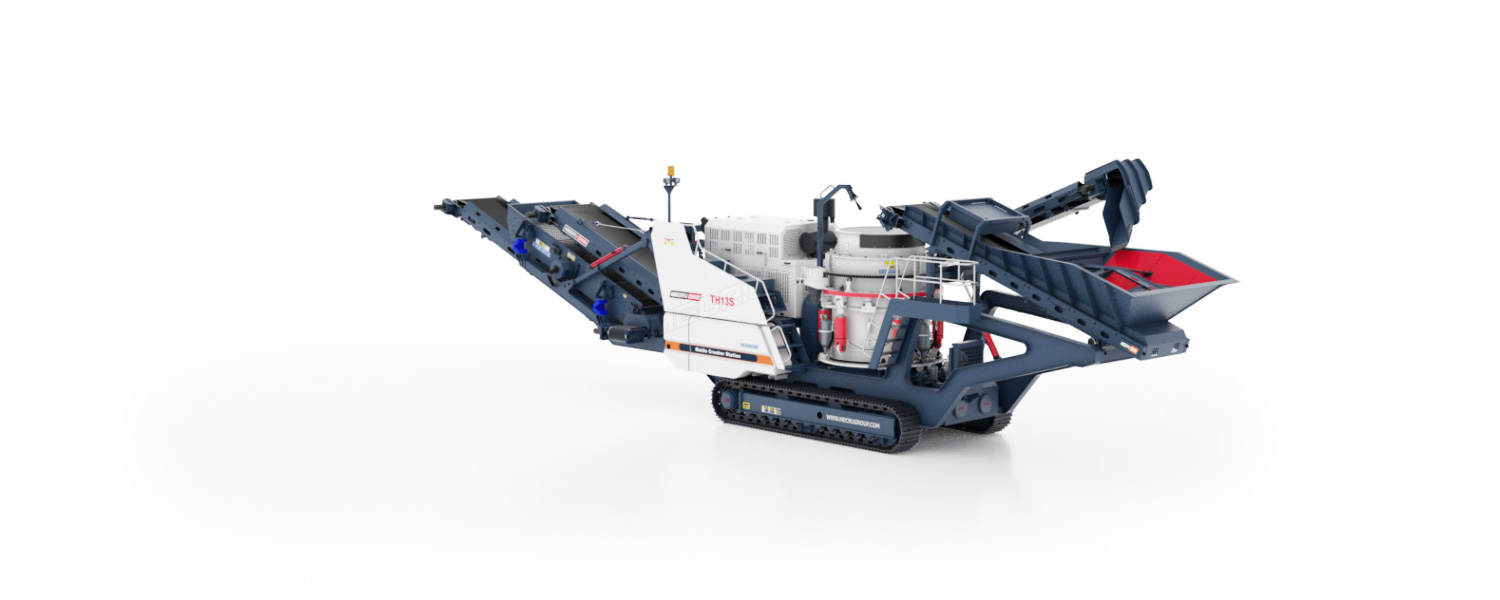

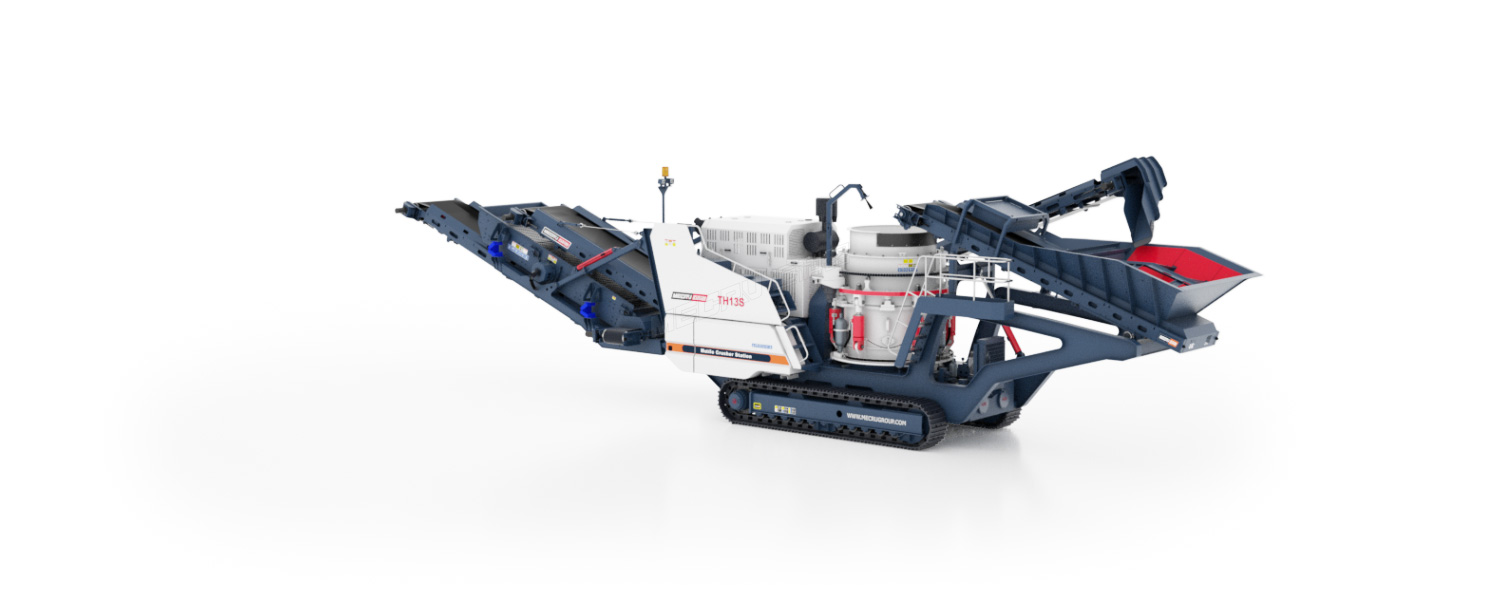

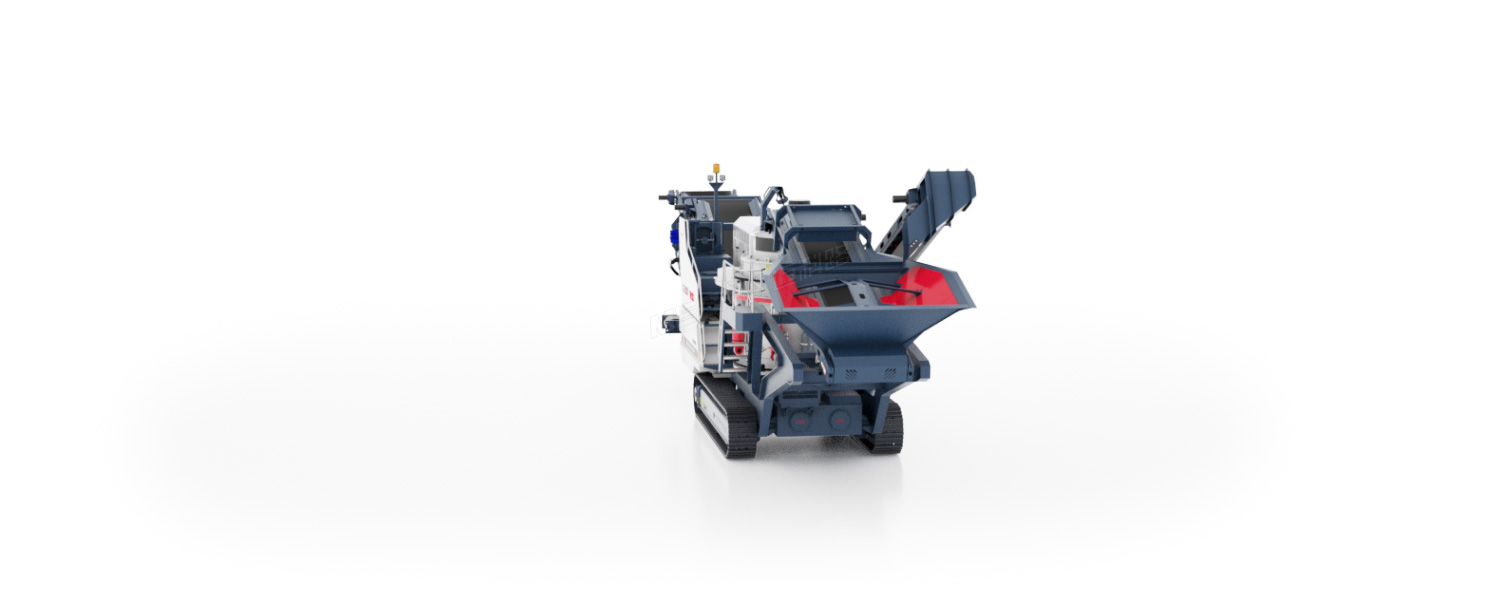

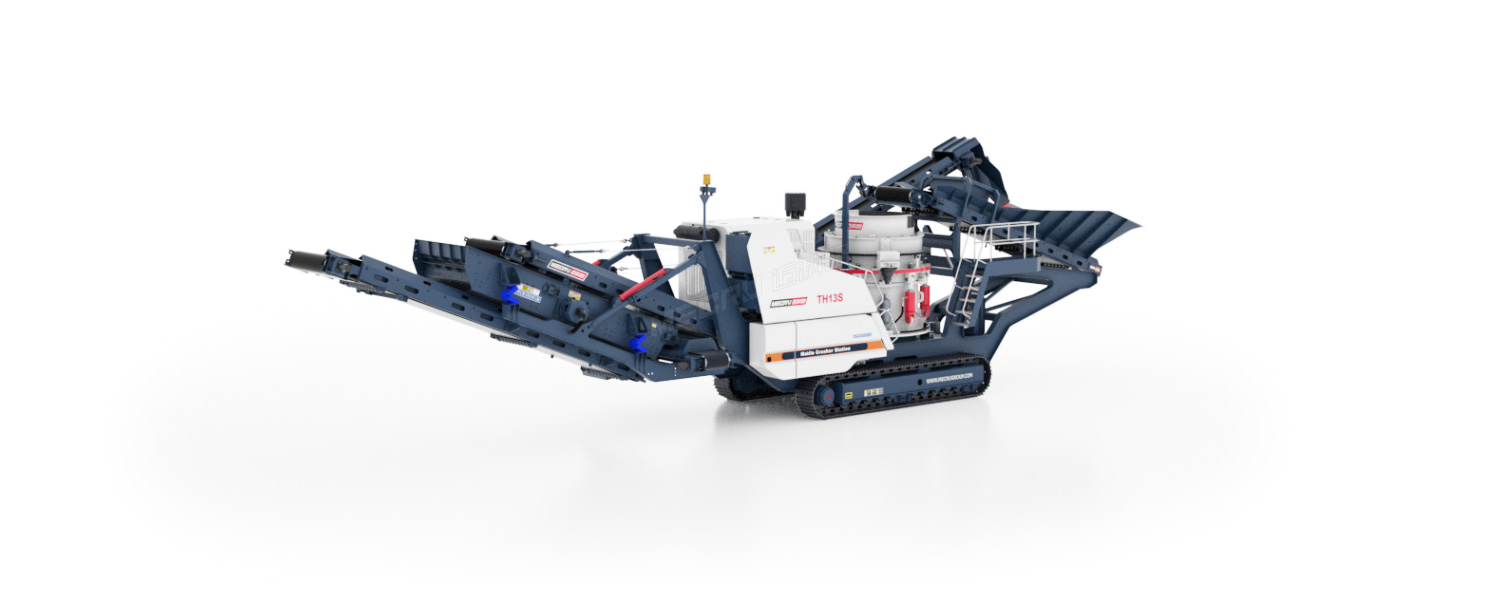

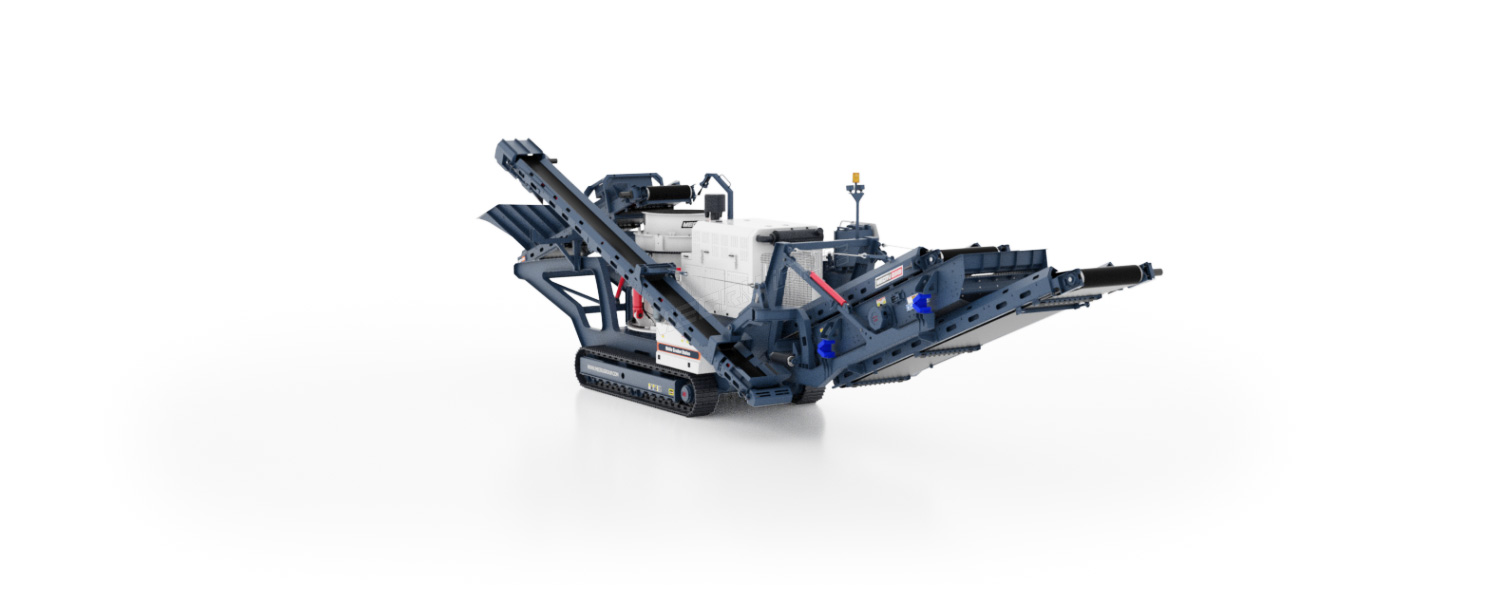

Mouse drag product 360°rotation

Product Advantages

  • The integrated operation can eliminate the obstacles to the crushing operation brought by the crushing site, environment and complicated basic configuration.

  • Equipped with hydraulic overload protection device, large output, high compression ratio, uniform product texture.

  • The design of the on-board crawler hydraulic site has strong mobility, and can directly reach the crushing site to complete the on-site crushing operation of the material, and can also move with the advancement of the raw material mining surface, thereby greatly reducing the transportation cost of the material.

  • Flexible collocation, can be used alone as a crushing unit or combined with other equipment to form a multi-stage operation.

  • Heavy-duty ship frame, stable and durable.

Technical Parameters

ItemsCrusher modelFeeding belt convey for height (mm)Capacity (t/h)Screen modelFeeding opening size (mm)Transportation size (mm)Weight (t)
THP300HPG300310085-440
80-23015000*3000*380048
THP400HPG4003160135-625
90-29016200*3000*380050
THP300SHPG300310085-440YK133080-23016620*3390*380060
THP400SHPG4003160135-625YK133090-29017000*3400*380062

Note:Any change of technical data shall not be advised additionally.

Application Areas

  • Mines and Quarries

    Mines and Quarries

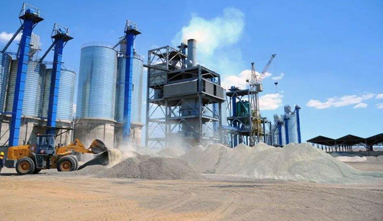

  • Cement Production

    Cement Production

  • Building Construction

    Building Construction

  • Road Construction

    Road Construction

Prev
Next

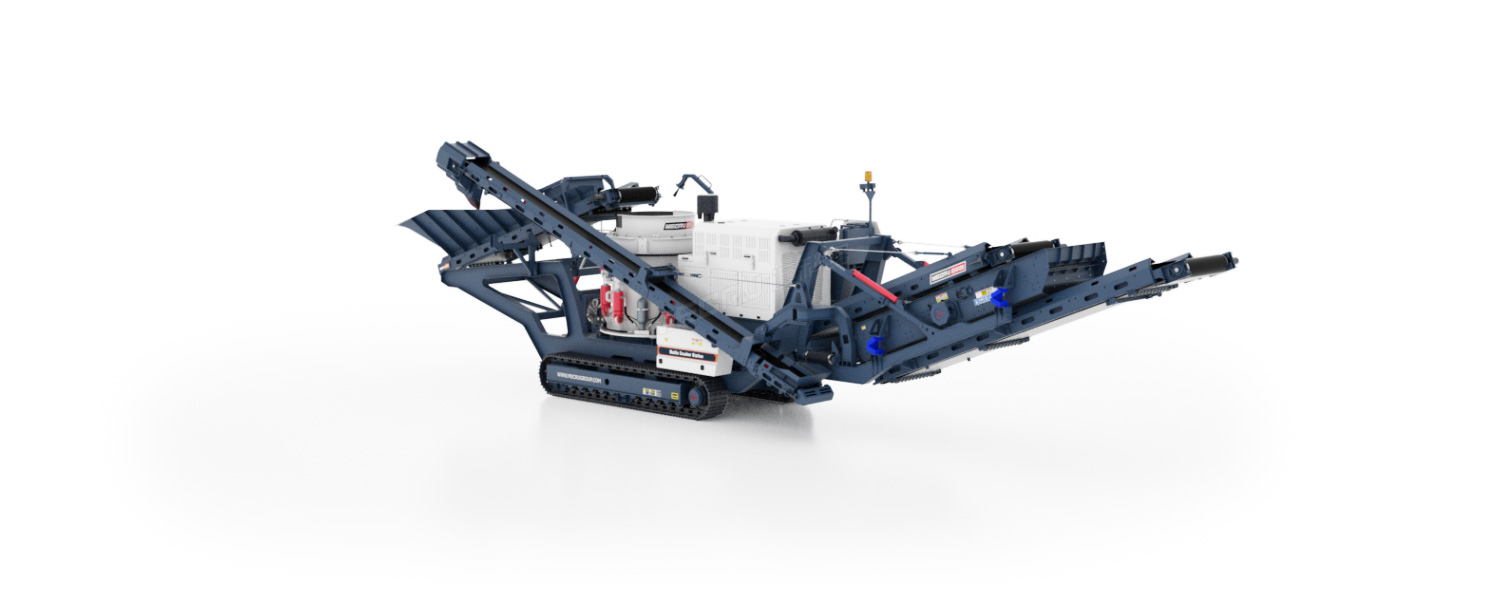

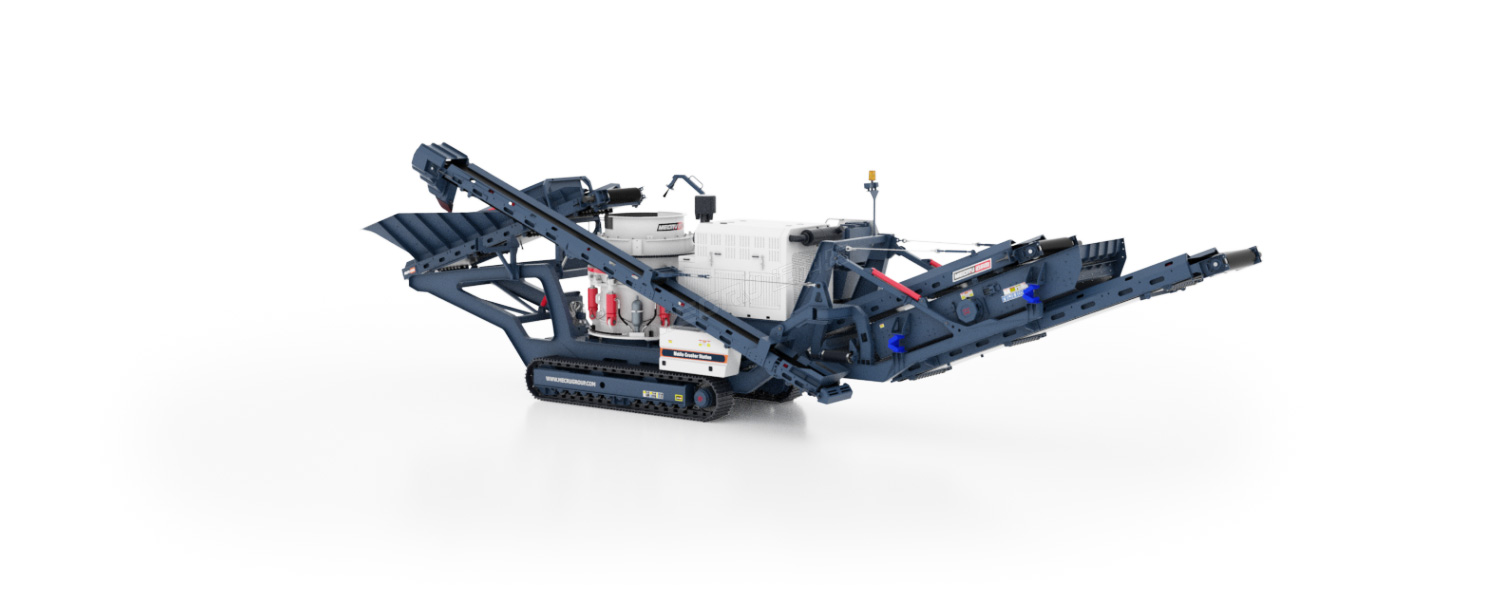

Tracked Cone Crusher

Tracked Cone Crusher

Work Principle

During work, the materials are initially screened by the vibrating screen and enter the cone crusher for crushing treatment. The material is circulated and broken by the conveyor belt. The circular vibrating screen forms a closed circuit system. The finished materials are output by the conveyor for continuous crushing operations.
